51 71 ... Removing and installing/replacing cover for carbon canister

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

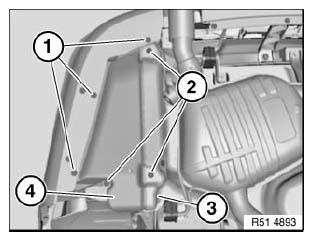

Version, carbon canister, side:

Release screws (1 and 2).

Press thermal insulation (3) to one side slightly and feed out cover (4).

Fig 1: Identifying Thermal Insulation, Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

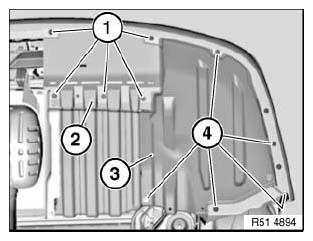

Version, carbon canister, middle:

Release screws (1) and remove cover (2).

Release screws (4) and remove cover (3).

Fig 2: Identifying Covers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
