41 63 003 Cover Bowl Replacement

Necessary preliminary tasks:

• Remove Flap For Fuel Filler Neck
• Remove Servodrive For Tank Filler Flap
• Remove Front Wheel Arch Cover (Rear Section)

Unscrew nut (1).

Installation:

Make sure seal (2) is correctly seated.

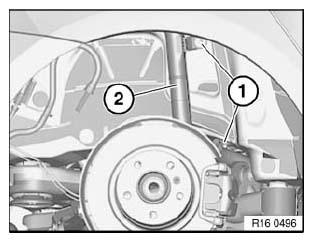

Fig 1: Identifying Cover Bowl Seal And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean contact surface  on body and grounding lead on fuel filler pipe.

Ground connection must be guaranteed.

Release nuts (1).

Fig 2: Identifying Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Turn cover (1) through approx. 45° and lever out in direction of arrow.

Fig 3: Identifying Turn Cover And Levering Angle

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining strap (1) inwards and remove.

Remove cover (2).

Remove rubber pad (3).

Insert a suitable tool through bores (3) and release catches.

Installation:

Make sure seal (4) is correctly seated.

Fig 4: Identifying Rubber Pad, Seal, Retaining Strap And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

Fig 5: Identifying Protective Cap, Catches And Ejector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

Fig 6: Identifying Locks And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Close flap (1).

Twist cover bowl (2) in direction of arrow out of side panel and remove.

Fig 7: Identifying Flap And Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on cover bowl (6) must not be damaged or missing:

1. Rubber pad
2. Catches, top/bottom
3. Spring
4. Catch
5. Guide
   Fig 8: Identifying Rubber Pad, Spring, Guide And Catches

   Courtesy of BMW OF NORTH AMERICA, INC.
