67 11 555 Removing and installing / replacing servodrive for tank filler flap

Necessary preliminary tasks:

• Remove Top Trim From Tail Panel .
• Partially remove Luggage Compartment Wheel Arch Trim On Right

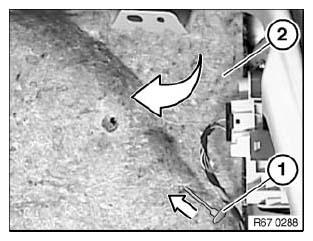

Feed out emergency actuation pull strap (1) in direction of arrow.

Fold acoustic insulation (2) forwards.

Fig 1: Feeding Out Emergency Actuation Pull Strap

Courtesy of BMW OF NORTH AMERICA, INC.

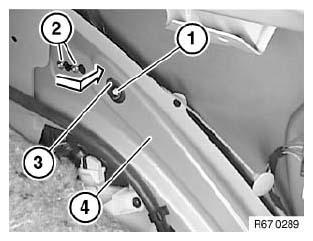

Disconnect plug connection (1).

Slacken screws (2)

Feed servodrive for fuel filler flap (3) in direction of arrow out of retaining plate (4) and remove.

Installation:

Carry out adjustment of servodrive for tank filler flap (3) via both elongated holes. It must be possible to lock or unlock the fuel filler flap completely.

Fig 2: Identifying Plate, Plug Connection, Fuel Filler Flap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Turn sleeve (1) with a suitable tool (e.g.: pointed pliers) approx. 45° in direction of arrow and pull out of cover housing (2).

Fig 3: Removing Gas Tank Housing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 4: Identifying Sleeve, Locking Pin And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Disengage emergency actuation pull strap (2) from retainer (5) and remove towards front.

If necessary, unclip locking pin (3) in direction of arrow from servodrive for tank filler flap (4).

Fig 5: Disengaging Emergency Actuation Pull Strap From Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
