51 47 312 Replacing footrest for front passenger compartment

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Trim Panel For Pedal Assembly

NOTE: Footrest is either bonded to carpet or secured with retaining rings from rear to carpet.

Attachments with retaining rings are drilled out
Bonded footrest is detached with a hot air blower

The attachment points must always be drilled out first.

Place drilling hole template (1) on footrest (2) and align to outer edge of footrest (2) (see arrows in Fig 1 ).

Mark bore holes with punch and remove drilling hole template (1).

Drill out attachment points.

Predrill to 3 mm dia.
Drill out to 10 mm dia.

NOTE: If the footrest is not bonded, it can be removed now. Continue with the next work step but one.

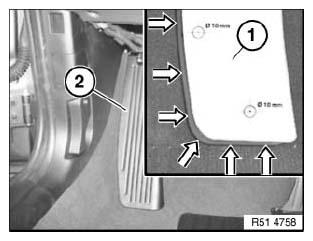

Fig 1: Identifying Drilling Hole Template, Footrest And Arrows

G04728594

Courtesy of BMW OF NORTH AMERICA, INC.

Bonded footrest only:

NOTE: Adhesive bead must remain on carpet (risk of damage).

Heat footrest (1) with hot air blower and thereby release adhesive bead from footrest (1).

If necessary, pull off footrest (1) in inward direction.

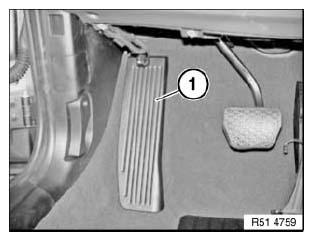

Fig 2: Identifying Footrest

G04728595

Courtesy of BMW OF NORTH AMERICA, INC.

Only when fitting retaining rings:

Remove Left Footwell Side Trim Panel.

Drive through pins (1).

Fold carpet (2) inwards slightly and remove pins.

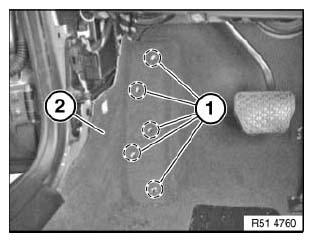

Fig 3: Identifying Carpet And Pins

G04728596

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Heat footrest (1) with hot air blower and apply adhesive bead along line (2) with hot-melt adhesive gun.

Place footrest (1) on carpet and stick on.

Press footrest (1) down until adhesive bead has cooled down.

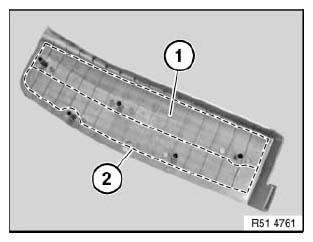

Fig 4: Identifying Footrest And Adhesive Bead Line

G04728597

Courtesy of BMW OF NORTH AMERICA, INC.
