51 46 007 Replacing panel for rear window shelf (parcel shelf)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Panel For Rear Window Shelf

Specification with tweeter/treble speaker:

Remove left/right Tweeter

Specification with roller sun blind:

Remove trims (1).

Press roller sun blind (2) together at (A) in direction of arrow and press through from (A) to (B).

Remove roller sun blind (2) towards bottom.

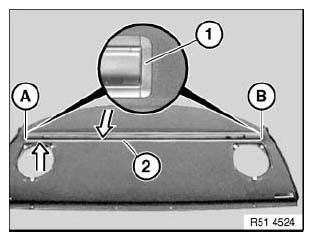

Fig 1: Identifying Roller Sun Blind And Trim

G04728567

Courtesy of BMW OF NORTH AMERICA, INC.

Specification with through-loading system:

Release nut (1) on underside of rear window shelf (2) and remove cap (3).

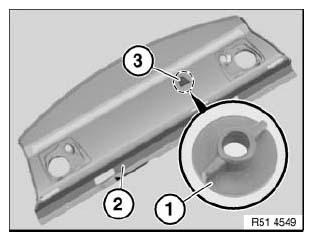

Fig 2: Identifying Rear Window Shelf, Cap And Nut

G04728568

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insulating mat in area "A" on underside of new panel (1).

NOTE: Insulating mat is perforated in area "A".

Cut out opening (3) at moulding (2).

Drill areas "B" of opening (3) with 8 mm dia. drill bit and cut out remaining material at moulding (2) with a scalpel.

IMPORTANT: Ensure a clean cut so that the panel material (1) is not damaged.

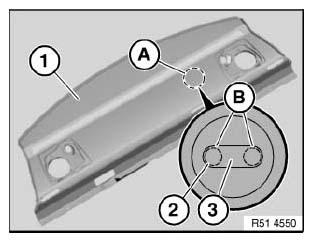

Fig 3: Identifying Drill Areas, Moulding And New Panel

G04728569

Courtesy of BMW OF NORTH AMERICA, INC.

Specification with Top Tether eyelets for child seat:

Remove insulating mat in area "A" on underside of new panel (1).

NOTE: Insulating mat is perforated in areas "A".

Cut out opening (3) at moulding (2) with a scalpel.

IMPORTANT: Ensure a clean cut so that the panel material (1) is not damaged.

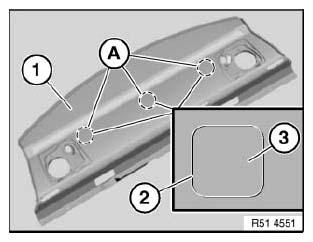

Fig 4: Identifying Opening, Moulding And New Panel

G04728570

Courtesy of BMW OF NORTH AMERICA, INC.
