51 46 001 Removing and installing panel for rear window shelf (parcel shelf)

Necessary preliminary tasks:

• Remove left/right Trim Panel For Roof Pillar  (C-pillar)
• Remove Rear Mid-Range Speaker on left/right
• Release bottom rear Seat Belts

Version with child seat holder:

• Remove all Top Tether Eyelets For Child Seat

Version without through-loading system:

• Remove Backrest for rear seats

Version with through-loading system:

• Remove Trim On Rear Window Shelf
• Remove left/right Armrest Side Sections

Version with roller sun blind:

• If necessary, remove Drawer  in luggage compartment

Version with roller sun blind:

Release screws (1).

For tightening torque refer to 51 46 3AZ in 51 46 PANEL, REAR PARCEL SHELF, ROLLER SUN BLIND .

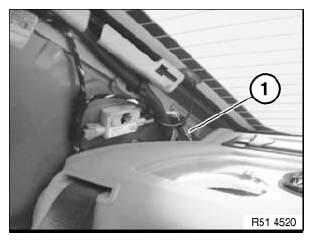

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with roller sun blind:

Disconnect connector (1).

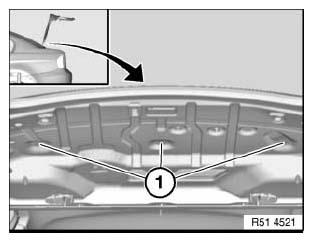

Fig 2: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

All versions:

Remove plate (1).

Pay attention to catches (2).

Remove trim (1) and feed out from belt (3).

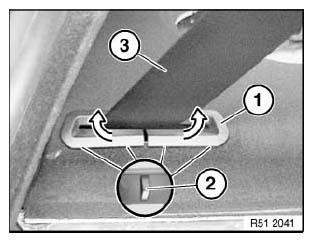

Fig 3: Identifying Trim Plate , Catches And Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Version without through-loading system:

Release clips (2).

All versions:

Pull out rear window shelf (1) towards front and feed out belts (4).

Installation:

Make sure rear window shelf (1) is correctly fed under grid (3)

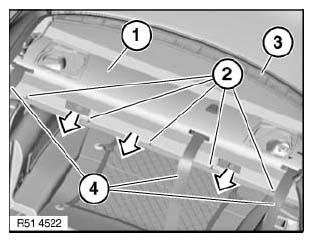

Fig 4: Identifying Clips, Rear Window Shelf, Grid And Belts

Courtesy of BMW OF NORTH AMERICA, INC.
