51 46 ... Removing and installing/replacing trim on rear window shelf (parcel shelf)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release rear-seat backrest and fold forward.

Release clips (1) and remove decorative trim (2) towards front.

Installation:

If necessary, replace clips (1).

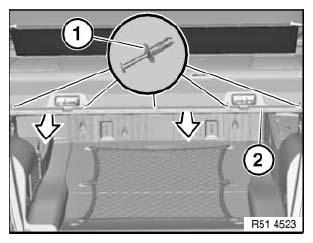

Fig 1: Identifying Decorative Trim And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
