51 45 031 Replacing instrument panel trim

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Necessary preliminary tasks:

Remove Instrument Panel Trim

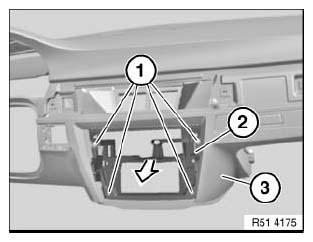

Release screws (1).

Remove centre function carrier (2) from instrument panel trim (3).

Fig 1: Identifying Centre Function Carrier , Instrument Panel Trim And Mounting Screws

G04728545

Courtesy of BMW OF NORTH AMERICA, INC.

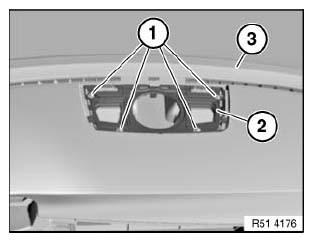

Release screws (1).

Remove speaker receptacle (2) from instrument panel trim (3).

Fig 2: Identifying Speaker Receptacle, Instrument Panel Trim And Screws

G04728546

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Airbag Module On Passenger Side.

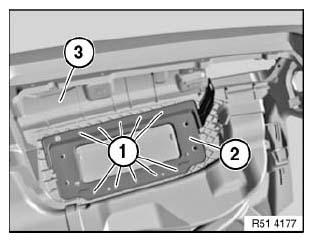

Release screws (1).

Remove holder for airbag module on passenger side (2) from instrument panel trim (3).

Fig 3: Identifying Airbag Module, Instrument Panel Trim And Screws

G04728547

Courtesy of BMW OF NORTH AMERICA, INC.

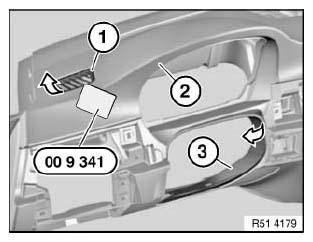

Unclip both side fresh-air grills (1) with special tool 00 9 340 in direction of arrow from instrument panel trim (2).

Unclip cover for steering column opening (3) in direction of arrow from instrument panel trim (2).

Fig 4: Identifying Steering Column Opening, Fresh-Air Gills, Instrument Panel Trim And Special Tool (00 9 340)

G04728548

Courtesy of BMW OF NORTH AMERICA, INC.

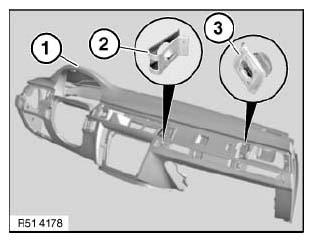

Remove all metal nuts (2) and clips (3) from instrument panel trim (1).

Fig 5: Identifying Clips, Instrument Panel Trim And Nuts

G04728549

Courtesy of BMW OF NORTH AMERICA, INC.
