51 37 000 Removing and installing/replacing complete rear left or right power window unit

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Door Window Glass

Unscrew nuts (1).

For tightening torque refer to 51 35 2AZ in 51 35 POWER WINDOWS, REAR .

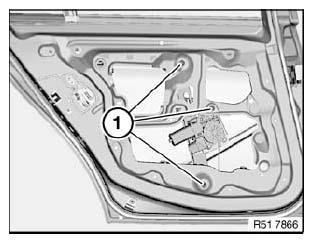

Fig 1: Identifying Rear Door Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Turn power window unit (1) in rear door and feed out in direction of arrow.

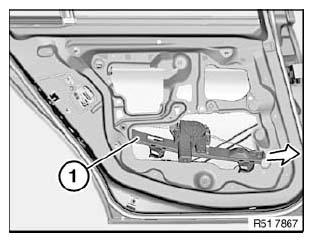

Fig 2: Identifying Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and detach flat motor (2) from power window unit (3).

For tightening torque refer to 51 35 1AZ in 51 35 POWER WINDOWS, REAR .

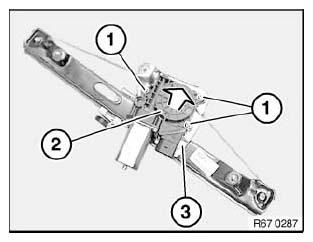

Fig 3: Identifying Screws, Flat Motor And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
