51 34 171 Replacing rear left or right door window

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

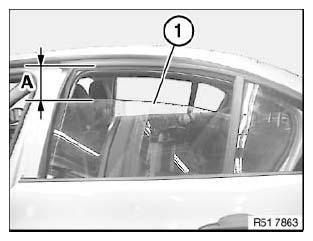

Open door window glass (1) down to distance (A)

A = approx. 120 mm

Fig 1: Identifying Door Window Glass And Opening Distance

Courtesy of BMW OF NORTH AMERICA, INC.

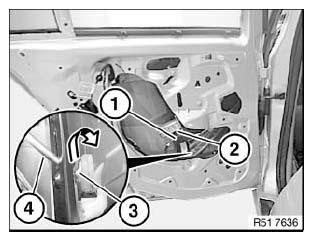

IMPORTANT: Disconnect plug connection (1) from power window motor (2) (risk of trapping).

Lever out catches (3) with screwdriver (4) in direction of arrow.

Installation:

Catch (3) must be correctly clipped into place.

Carry out function check on power window unit and anti-trapping protection.

If necessary, Normalize power window unit.

Fig 2: Identifying Catches, Screwdriver, Plug Connection And Power Window Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of window guide (3) must not be damaged or missing:

Catch
Buffer stop

Fig 3: Identifying Window Guide, Catch And Buffer Stop

Courtesy of BMW OF NORTH AMERICA, INC.

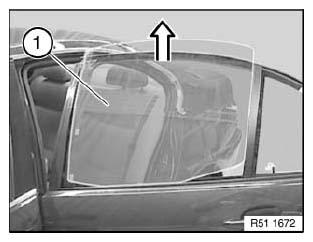

Remove door window glass (1) towards top.

Installation:

Door window glass does not need to be adjusted.

Fig 4: Identifying Rear Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
