51 34 211 Replacing rubber guide for rear left or right door window

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove Cover On Inside Door Window Frame
Release Trim On Window Guide and slide downwards slightly, do not remove

E91 only:

Remove trim on window frame at rear

NOTE: Window cavity cover strip does not have to be removed.

Lever out rubber guide (1) on door window frame at front (2) with special tool 00 9 317.

Fig 1: Identifying Special Tool (00 9 317), Rubber Guide And Rear Door Window Frame Front

G04728469

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rubber guide (1) out of window guide.

Detach rubber guide (1) in direction of arrow from door.

Fig 2: Identifying Rubber Guide

G04728470

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten rubber guide (2) with water.

Close door window glass (1) a little.

Push rubber guide (2) onto door window glass (1) and into window guide (3).

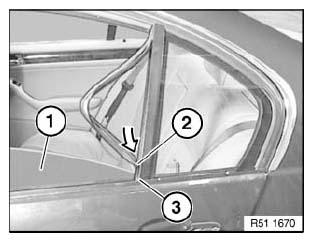

Fig 3: Identifying Rubber Guide, Window Glass And Window Guide

G04728471

Courtesy of BMW OF NORTH AMERICA, INC.
