51 34 ... Removing and installing/replacing trim for window guide of left or right rear door

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove outer Window Cavity Cover Strip

Version without roller sun blind:

Remove Cover On Door Window Frame

Version with roller sun blind:

Remove Roller Sun Blind On Fixed Side Window

Pull rubber guide (1) out of trim (2).

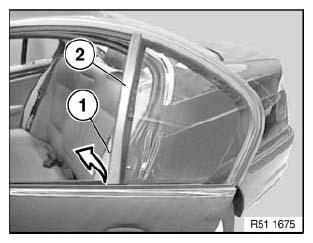

Fig 1: Identifying Rubber Guide And Trim

G04728457

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow Instructions For Bonding Acoustic Insulation.

Detach acoustic insulation (1) in area (A).

Release screw (2) behind acoustic insulation (1).

Grip trim firmly and release screws (3).

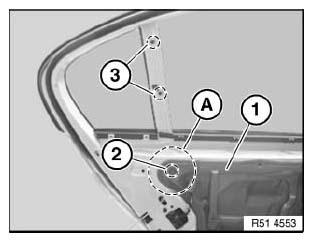

Fig 2: Identifying Acoustic Insulation, Screw And Insulation Retaining Area

G04728458

Courtesy of BMW OF NORTH AMERICA, INC.

Push trim (1) downwards from rubber guide (2) and remove towards top.

Installation:

Make sure rubber guide (2) is correctly seated on trim (1).

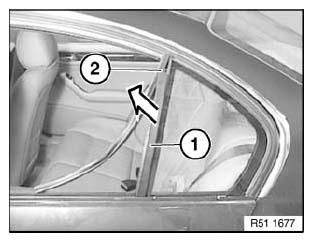

Fig 3: Identifying Trim And Rubber Guide

G04728459

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) of trim (2) must not be damaged.

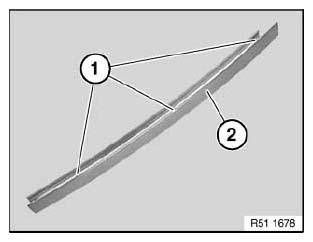

Fig 4: Identifying Threads And Trim

G04728460

Courtesy of BMW OF NORTH AMERICA, INC.
