51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open rear side window

Detach rubber seal (1) and rubber guide (2) from trim.

Fig 1: Identifying Rubber Seal And Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Carefully detach trim (2) towards front/top.

Installation:

Fitted foam pieces must not be damaged when trim (2) is pushed in.

Fig 2: Identifying Trim And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

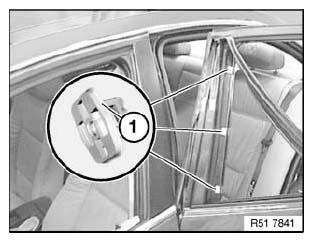

If necessary, replace faulty plastic nuts (1).

Fig 3: Identifying Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
