51 16 400 Removing and installing/replacing roller sun blind on fixed side window of left or right rear door
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 317

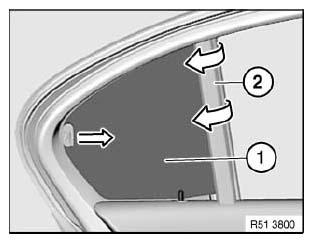

Retract roller sun blind (1).
Open side window.
Unclip casing (2) of roller sun blind (1) with special tool 00 9 317 in direction of arrow.
Installation:
Casing (2) must not be damaged.
