51 33 000 Removing and installing (replacing) power window unit in left or right front door

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing door lock, snap door window glass out only, do not remove, secure in door window frame.

Necessary preliminary tasks:

Remove front door window glass

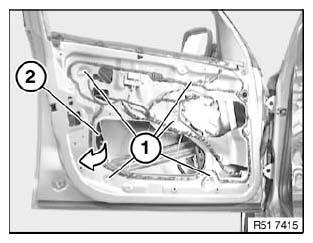

Unscrew nuts (1).

Feed out rear section of power window unit (2) in direction of arrow.

For tightening torque refer to 51 33 1AZ in 51 33 POWER WINDOWS, FRONT .

Fig 1: Identifying Retaining Nuts And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

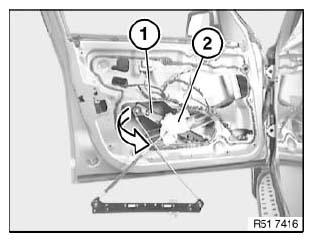

Feed out front section of power window unit (1) with flat motor (2) in direction of arrow from front door.

Replacement:

Remove Flat Motor For Power Window Unit.

Fig 2: Identifying Power Window Unit And Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.
