51 24 130 Removing and installing/replacing striker for rear lid lock
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Trim On Tail Panel

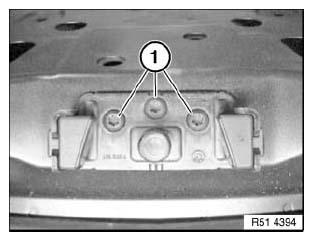

Release screws (1) and remove striker.
For tightening torque refer to 51 24 2AZ in 51 24 REAR LID LOCKS .
Installation:
Adjust Striker.
