51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim (luggage compartment mat)

Detach seal (1) in covered area of trim (4).

Lever out protective caps (2) and release screws underneath.

Release expansion rivets (3).

Lever out trim (4) inwards/upwards.

Installation:

If necessary, replace damaged protective caps (2) and expander rivets (3).

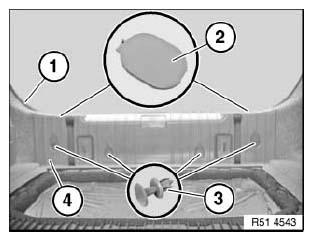

Fig 1: Identifying Trim, Seal, Protective Caps And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Lift off cover (1).

If necessary, feed out universal holders (2).

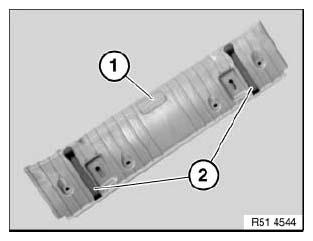

Fig 2: Identifying Cover And Universal Holders

Courtesy of BMW OF NORTH AMERICA, INC.
