51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Panel For Rear Lid

Release screws (2) and feed out upper section of rear lid lock (3).

Disconnect plug connection (1).

Installation:

Use self-tapping screws.

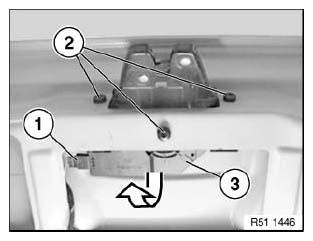

Fig 1: Identifying Plug Connection, Screws And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:

Make sure lock (1) is correctly seated.

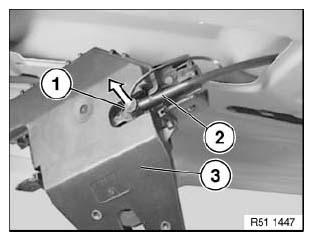

Fig 2: Identifying Lock, Actuating Rod And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
