51 49 000 Removing and installing/replacing panel for rear lid

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Version with emergency release:

Detach handle (1) from clip (2).

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

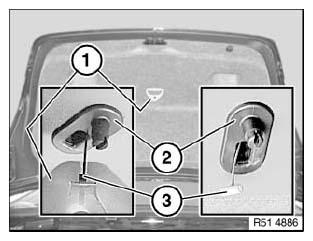

Fig 1: Identifying Bowden Cable, Handle And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) and remove panel (2).

Installation:

If necessary, replace damaged clips (1).

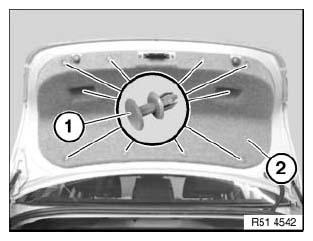

Fig 2: Identifying Clip And Rear Lid Panel

Courtesy of BMW OF NORTH AMERICA, INC.
