51 23 211 Removing and installing/replacing cable for front engine hood locks (to passenger compartment)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Footwell Side Trim Panel
Remove Lower Section Of Microfilter Housing On Left.

Disengage Bowden cable (1) from release lever (2) and feed out in direction of arrow.

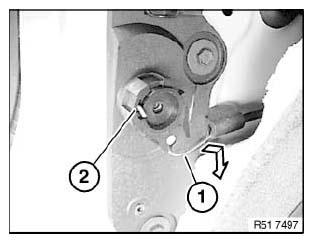

Fig 1: Identifying Bowden Cable And Release Lever

G04728391

Courtesy of BMW OF NORTH AMERICA, INC.

Release expander rivet (1) and nut (2).

Feed out water channel (3) towards top.

Installation:

Make sure water channel (3) is correctly seated.

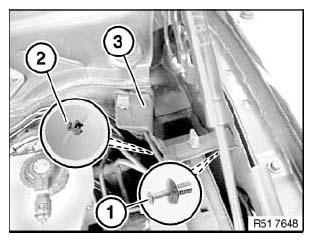

Fig 2: Identifying Nut, Expander Rivet And Water Channel

G04728392

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable (1) in direction of engine compartment.

Installation:

Lay Bowden cable (1) without kinks.

IMPORTANT: Grommet (2) must not be damaged.

Check that grommet (2) is correctly seated (water ingress).

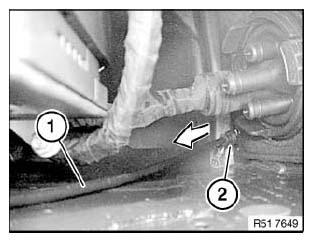

Fig 3: Identifying Grommet And Bowden Cable

G04728393

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1) and remove.

Fig 4: Identifying Coupling, Cover And Bowden Cable

G04728378

Courtesy of BMW OF NORTH AMERICA, INC.
