51 23 160 Removing and installing/replacing arrester hook on engine hood

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Raise bonnet/hood lid.

Release screws (1) and remove arrester hook (2).

For tightening torque refer to 51 23 1AZ in 51 23 HOOD/BONNET LOCKS .

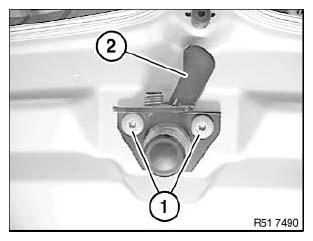

Fig 1: Identifying Arrester Hook And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
