51 23 155 Removing and installing/replacing bar for retaining hook

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Bumper

Release screws (1) and clips (3).

Remove intake cover (2).

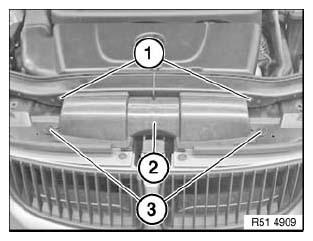

Fig 1: Identifying Screws, Clips And Intake Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bar (2).

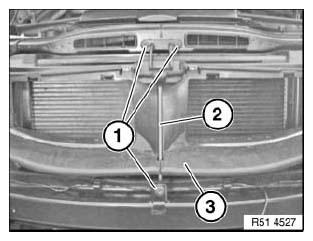

Fig 2: Identifying Screws And Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on cooling air guide (2).

Feed out cooling air guide (2) with bar towards front.

Feed bar out of cooling air guide (2).

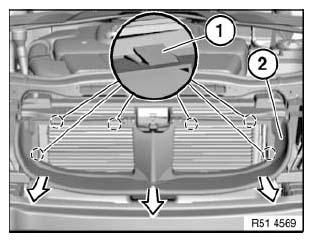

Fig 3: Identifying Catches And Cooling Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.
