51 23 110 Removing and installing/replacing left hood/bonnet lock
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Unclip coupling (1) from side panel.
Lever out cover (2) at coupling (1).
Lever cable (3) out of coupling (1).
NOTE:
The operation "Disconnect cable for hood/bonnet locks" ends here.
Release screws (1).

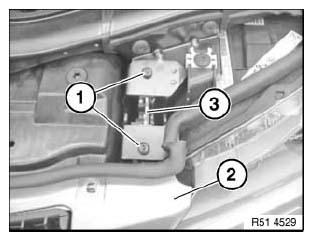

Release screws (1).
Carefully pull bumper (2) forwards and feed out hood/bonnet lock (3) with cable.
For tightening torque refer to 51 23 2AZ in 51 23 HOOD/BONNET LOCKS .

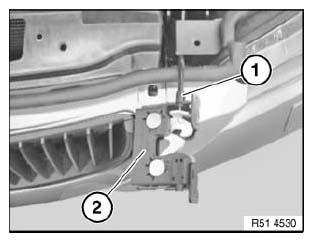

Disengage cable (1) from hood/bonnet lock (2).
When replacing cable for hood/bonnet locks:
Feed cable (1) out of front wall.
