51 16 213 Replacing trim for storage compartment
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Trim For Storage Compartment
- Remove Insert For Centre Console
Version with controller:
- Remove Controller
E93 only:
- Remove switch for convertible top operation
Version without controller:

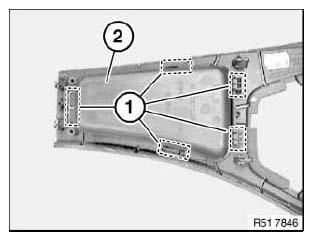

Carefully release catches (1) and remove storage tray (2).
