51 16 154 Removing and installing/replacing insert for centre console

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Trim For Storage Compartment

Remove foam material (1).

Release screws (2) and remove insert/ashtray (3).

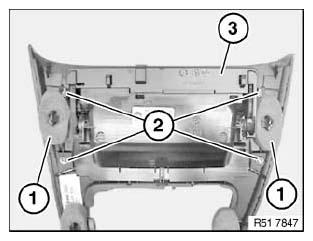

Fig 1: Identifying Mounting Screws, Foam Material And Insert/Ashtray

Courtesy of BMW OF NORTH AMERICA, INC.
