51 32 160 Removing and installing/replacing housing cover on inner left or right door window frame

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Door Trim Panel

IMPORTANT: Risk of damage!

Cover (2) must not be kinked.

If necessary, feed out cable (1) and disconnect plug connection.

Lever cover (2) out of retainers (3).

Unclip cover (2) in direction of arrow and remove.

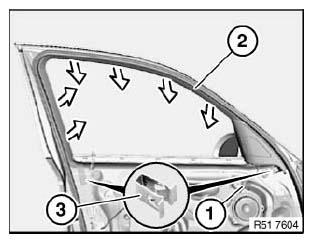

Fig 1: Identifying Cover, Retainers And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover (3) must not be damaged or missing:

Retainer (not on E70)
Sound insulation

Replacement:

If necessary, remove Speaker .

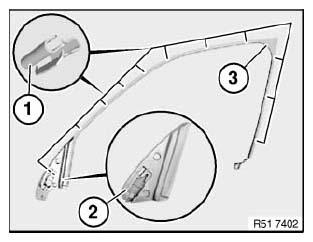

Fig 2: Identifying Cover, Retainer And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
