51 13 117 Replacing cowl panel cover
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Cover For Cowl Panel
- Remove Spray Nozzle on left/right

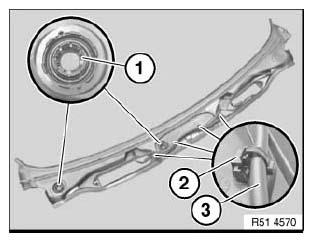

Release catches on grommets (1) and remove grommets (1) in outwards direction.
Release holder (2).
Remove washer fluid hose (3) and if necessary cable.
Installation:
Grommets (1) for wiper pivots must not be damaged; if necessary, replace grommets (1).
