51 12 828 Removing and installing/replacing left or right guide for rear bumper

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Bumper Trim

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unscrew nuts (1).

Remove guide (2).

Fig 1: Identifying Rear Bumper Guide And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged or missing.

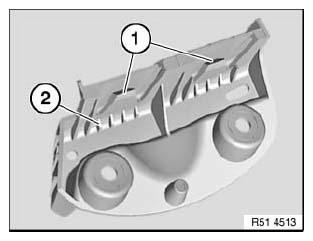

Fig 2: Identifying Rear Bumper Holder And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
