51 12 156 Removing and installing rear bumper trim

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Lights On Side Panel on left/right

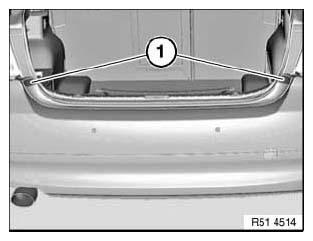

Lever out cover (1) and release screw underneath.

Fig 1: Identifying Rear Bumper Cover

G04728165

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

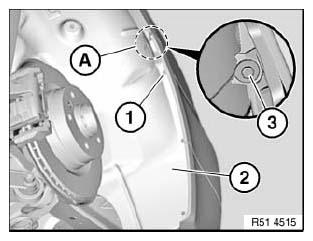

Release screw (1).

Bend wheel arch trim (2) in area (A) to one side.

Release screw (3).

Fig 2: Identifying Wheel Arch Trim And Screws

G04728166

Courtesy of BMW OF NORTH AMERICA, INC.

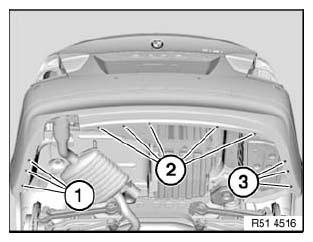

Release screws (1 to 3).

Fig 3: Identifying Rear Bumper Mounting Screws

G04728167

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

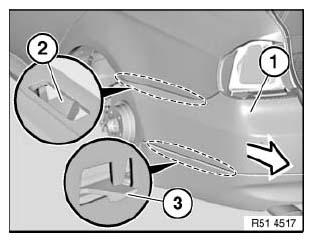

IMPORTANT: Do not detach bumper trim (1) at sides (risk of damage).

Pull bumper trim (1) towards rear and release from catches (2 and 3).

Fig 4: Identifying Bumper Trim And Catches

G04728168

Courtesy of BMW OF NORTH AMERICA, INC.

Version with PDC:

Disconnect plug connection for ultrasonic transducers.

Remove bumper trim (1) towards rear with aid of a 2nd person.
