51 12 825 Removing and installing/replacing guide for rear centre bumper

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Bumper Trim

Version with Comfort Access/CA:

Remove Bumper Aerial For Comfort Access

If necessary, feed out cable (1) of Park Distance Control.

Release nuts (2) and remove guide (3).

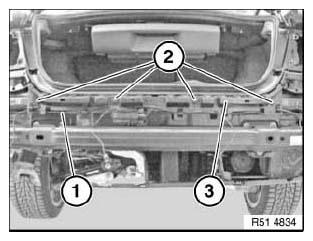

Fig 1: Identifying Park Distance Control Cable, Nuts And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
