51 12 821 Replacing both holders for rear bumper

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Bumper Trim

NOTE: The operation is described on the left side; proceed in the same way for the right side.

E93 only:

Release antenna holders (1 and 2) from holder (3).

Installation:

If necessary, replace faulty antenna holders (1 and 2).

Fig 1: Identifying Antenna Holders And Rear Bumper Holder

G04728170

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection at trigger transmitter.

Release screws (1 and 2).

Release nut (3) and remove holder (4).

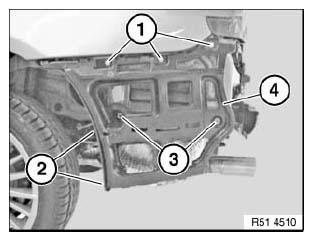

Fig 2: Identifying Rear Bumper Holder, Nut And Screws

G04728171

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged or missing.

E90/E91 only:

Catches (2) must not be damaged or missing.

Replacement:

If necessary, remove RDC trigger transmitter.

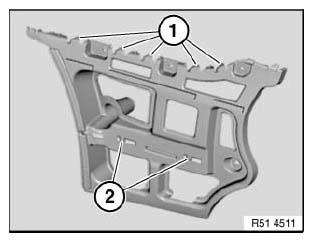

Fig 3: Identifying Rear Bumper Holder Catches

G04728172

Courtesy of BMW OF NORTH AMERICA, INC.
