63 21 180 Removing and installing/replacing left or right rear light (in side panel)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Remove cover (1) in direction of arrow from luggage compartment wheel arch trim (2).

Fig 1: Identifying Cover And Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

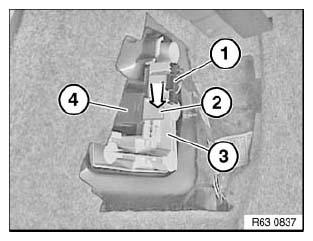

Disconnect plug connection (1).

Unlock locking clip (2) in direction of arrow and remove socket housing (3) from rear light (4).

Fig 2: Identifying Plug Connection, Locking Clip, Socket Housing And Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

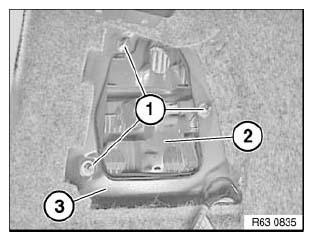

Release nuts (1), for tightening torque refer to 63 21 1AZ in 63 21 REAR LIGHT UNIT .

Remove rear light (2) in outwards direction from side panel (3).

Installation:

Make sure gap is uniform all round between rear light (2) and side panel (3).

Fig 3: Identifying Retaining Nuts, Rear Light And Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

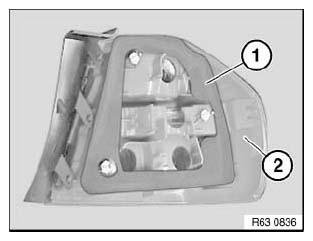

Make sure seal (1) is correctly seated on rear light (2).
