51 12 ... Replacing trim on rear bumper (M Technic aerodynamic kit)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- 00 9 317
Necessary preliminary tasks:
- Remove Rear Bumper Trim
- Remove Bottom Middle Trim On Rear Bumper

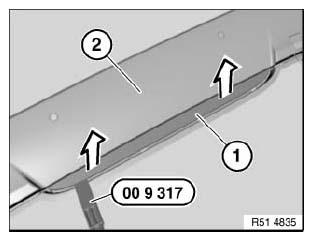

Carefully heat trim (1) with hot air blower and detach with special tool 00 9 317 from bumper (2).
Installation:
Minimum object temperature of trim and bumper ≥, 18°C.
If this temperature is not achieved, the components must be preheated.
For cleaning, use a fluff-free disposable cloth or a clean cleaning cloth.
Clean adhesive area of bumper with spirit.
Air drying time at least 1 minute.
Installation:

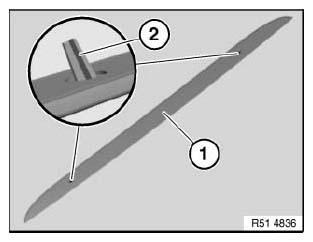

Trim (1) is positioned over guides (2) on bumper.
Remove liner from trim (1).
Press down trim (1) firmly with back of your hands over entire surface, especially the ends.
