51 11 ... Removing and installing/replacing cover for headlight cleaning system on left

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Pull out spray nozzle (1) by cover (2).

IMPORTANT: When releasing cover (2), grip spray nozzle (1) firmly and then allow to slide back slowly (risk of damage).

Release cover (2) sideways from spray nozzle (1).

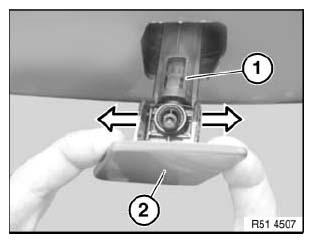

Fig 1: Identifying Spray Nozzle And Headlight Cleaning System Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on cover (2) must not be damaged.

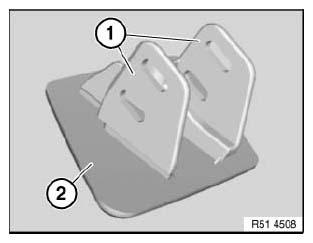

Fig 2: Identifying Guides And Headlight Cleaning System Cover

Courtesy of BMW OF NORTH AMERICA, INC.
