51 11 050 Removing and installing/replacing carrier for front bumper trim

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: During replacement, all the cavities of the carrier (1) and the crashbox (2) must be sealed with cavity sealant.

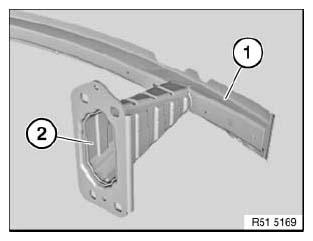

Fig 1: Identifying Carrier And Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove Front Bumper Trim
Remove fanfare horn on Left /Right

Release screw (1) on cooling air guide (2) on left and right.

Depending on engine version, release screws in area (A).

Remove cooling air guide (2) on left and right.

NOTE: The following work step ends here:

"Removing and installing cooling air guide".

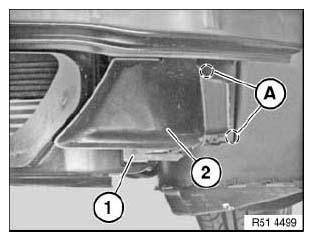

Fig 2: Identifying Cooling Air Guide And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release nuts (2) and blind rivets (3).

Installation:

Blind rivets (3) are not refitted.

If necessary, feed out cable and remove carrier (4).

For tightening torque refer to 51 11 2AZ in 51 11 FRONT BUMPER .

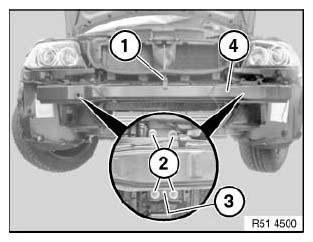

Fig 3: Identifying Blind Rivets, Screw, Nuts And Carrier
