54 12 170 Removing and installing/replacing connecting element pair for glass slide/tilt sunroof

Necessary preliminary tasks:

• Remove Glass Slide/Tilt Sunroof Lid
• Remove Rain Gutter
• Remove Wind Deflector

Slide connecting element (1) back.

Fig 1: Identifying Sunroof Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

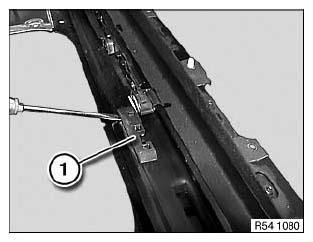

Lever out garage stop (1) with a screwdriver.

Fig 2: Leveraging Out Sunroof Garage Stop With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Advance connecting element (1) up to opening (2).

Fig 3: Identifying Sunroof Connecting Element And Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Lever control lever (1) out of guide rail and turn.

Fig 4: Removing Sunroof Control Lever Out Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Advance connecting element (1) up to end fitting.

Raise connecting element (1) and slide forwards out of guide.

Feed connecting element (1) out of carriage.

Fig 5: Raising Sunroof Connecting Element And Slide Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Carriage (1) for connecting element in guide rail.

Fig 6: Connecting Element In Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep to sequence of installation.

If necessary, move carriage towards rear slightly.

Insert connecting element (1) into guide rail.

Fig 7: Inserting Sunroof Connecting Element Into Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Engage connecting element (1) in carriage (2).

Turn control lever (3).

Fig 8: Identifying Sunroof Connecting Element, Carriage And Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Insert control lever (1) in opening.

Fig 9: Inserting Sunroof Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Move connecting element towards rear.

Clip in garage.

Assemble glass slide/tilt sunroof and carry out function check.

Initialize  glass slide/tilt sunroof.

Fig 10: Identifying Placement Of Sunroof Control Lever Spacer

Courtesy of BMW OF NORTH AMERICA, INC.
