61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

NOTE: The comfort access system is a radio-based system and can be interfered with by radio waves from other systems (e.g. mobile phone).

Necessary preliminary tasks:

Remove Decorative Strip On Instrument Panel On Left
Remove Light Operator Unit
Remove Trim Panel For Pedal Assembly

Unfasten plug connection (2) and disconnect.

IMPORTANT: Carefully unlock and disconnect associated plug connection for ribbon cable (1).

Replace ribbon cable (1) if damaged.

The ribbon cable leads to:

Insert for radio control key
Start/Stop switch

Release screw (3) and remove control unit for Car Access System (4) in downward direction.

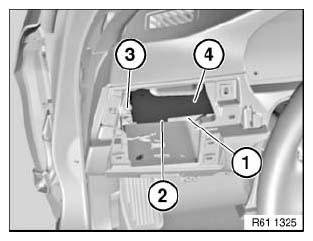

Fig 1: Identifying Plug Connection, Ribbon Cable And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Identifying Car Access System And Feed Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out Programming/Coding.

Version with independent heating:

Initialize Telestart hand transmitter.
