51 45 370 Removing and installing (replacing) left decorative strip on instrument panel

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever out left decorative strip on instrument panel (2) at fastening points (1) with special tool 00 9 317 and remove in direction of arrow.

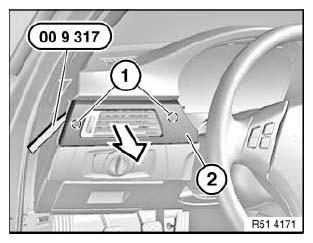

Fig 1: Identifying Instrument Panel, Fastening Points And Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unlock left fresh-air grill (1) at retaining lugs (2) and remove in direction of arrow from left decorative strip on instrument panel (3).

Installation:

Make sure left fresh-air grill (1) is correctly seated in mountings (4) of left decorative strip on instrument panel (3).

Make sure retaining lugs (2) are correctly seated in left decorative strip on instrument panel (3).

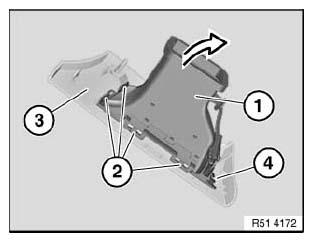

Fig 2: Identifying Mountings, Fresh-Air Grill, Lug And Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
