61 31 208 Removing and installing/replacing switch for lumbar support

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Outer Cover on front seat

Disconnect plug connection (3).

Unlock catches (1).

Remove switch for lumbar support (2) in direction of arrow.

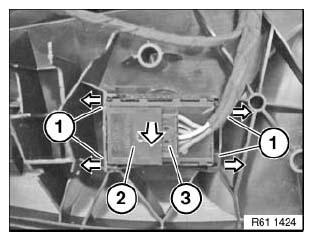

Fig 1: Identifying Lumbar Support Switch, Catches And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
