61 31 054 Removing and installing/replacing centre console switch cluster (with CCC/ASK)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Decorative Strip On Instrument Panel On Right
Remove Operator Unit For Heater/Air Conditioner

Unclip trim (3) at fastening points (1) and (2).

Feed out associated ribbon cable and remove trim (3) complete with centre console switch cluster (4).

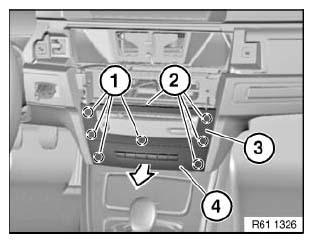

Fig 1: Identifying Trim, Fastening Points And Console Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip centre console switch cluster (1) at fastening points (2) and (4) and remove.

NOTE: Ribbon cable (3) of centre console switch cluster (1) leads to heater/air conditioner operator unit.

Installation:

Make sure centre console switch cluster (1) engages correctly in upper fastening points (4) and lower fastening points (2).

Fig 2: Identifying Console Switch Cluster, Fastening Points And Ribbon Cable

Courtesy of BMW OF NORTH AMERICA, INC.
