65 20 150 Removing and installing/replacing back-up antenna

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Panel For Parcel Shelf

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

Remove back-up antenna (3) from rear window shelf (4).

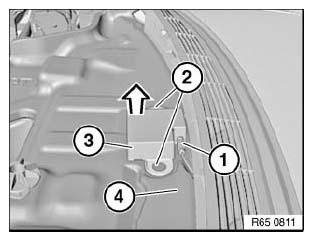

Fig 1: Identifying Plug Connection, Nuts, Back-Up Antenna And Rear Window Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
