66 31 006 Removing and installing (replacing) ACC sensor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER TRIM

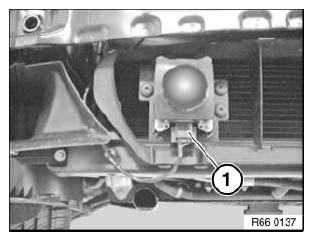

Disconnect plug connection (1).

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plastic nuts (1) with a suitable tool through approx. 90° and pull towards rear out of bracket (2).

Remove plastic nuts (1) from associated ball ends of ACC sensor.

Installation:

Always replace plastic nuts (1).

Fig 2: Identifying Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Check preliminary adjustment of ACC sensor (1).

If necessary, carry out preliminary adjustment at retaining pins (2).

Measurement A: 43 ± 0.5 mm

Fig 3: Identifying Retaining Pins
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

NOTE: In order to avoid incorrect programming procedures and error messages, it is essential when working with the Progman programming system always to use the latest Progman version

Carry out programming/coding. Refer to PROGMAN .

Carry out ACC sensor adjustment using BMW diagnostic system.
