63 99 435 Replacing bulb for left or right interior light (C-pillar or hard top)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights), refer to 63 99... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Version With Inside Reading Lamp:

Remove interior light. See 63 31 015 Removing and installing/replacing left or right interior light (C-pillar or hard top)

Turn socket housing counterclockwise and remove.

Remove bulb.

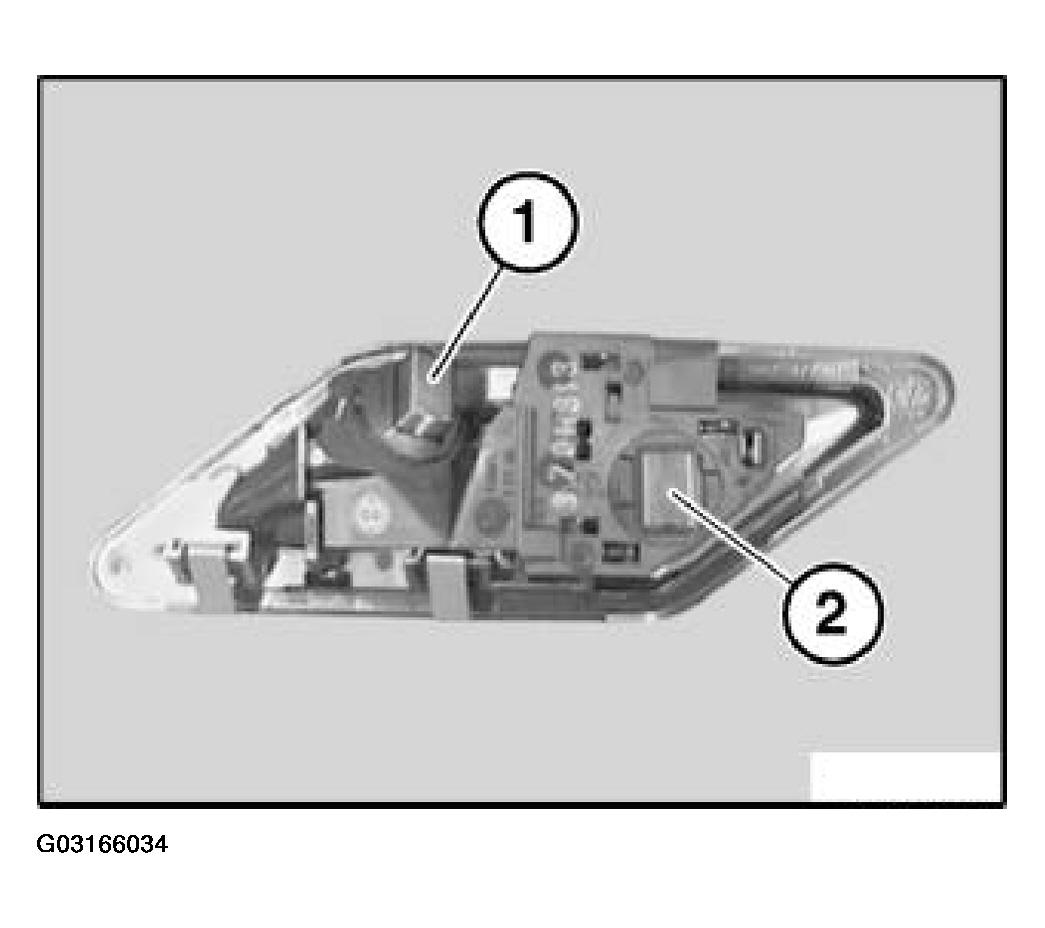

NOTE:

Socket housing for inside reading lamp.
Socket housing for interior light.

Fig 1: Identifying Socket Housing For Inside Reading Lamp And Socket Housing For Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Inside Reading Lamp:

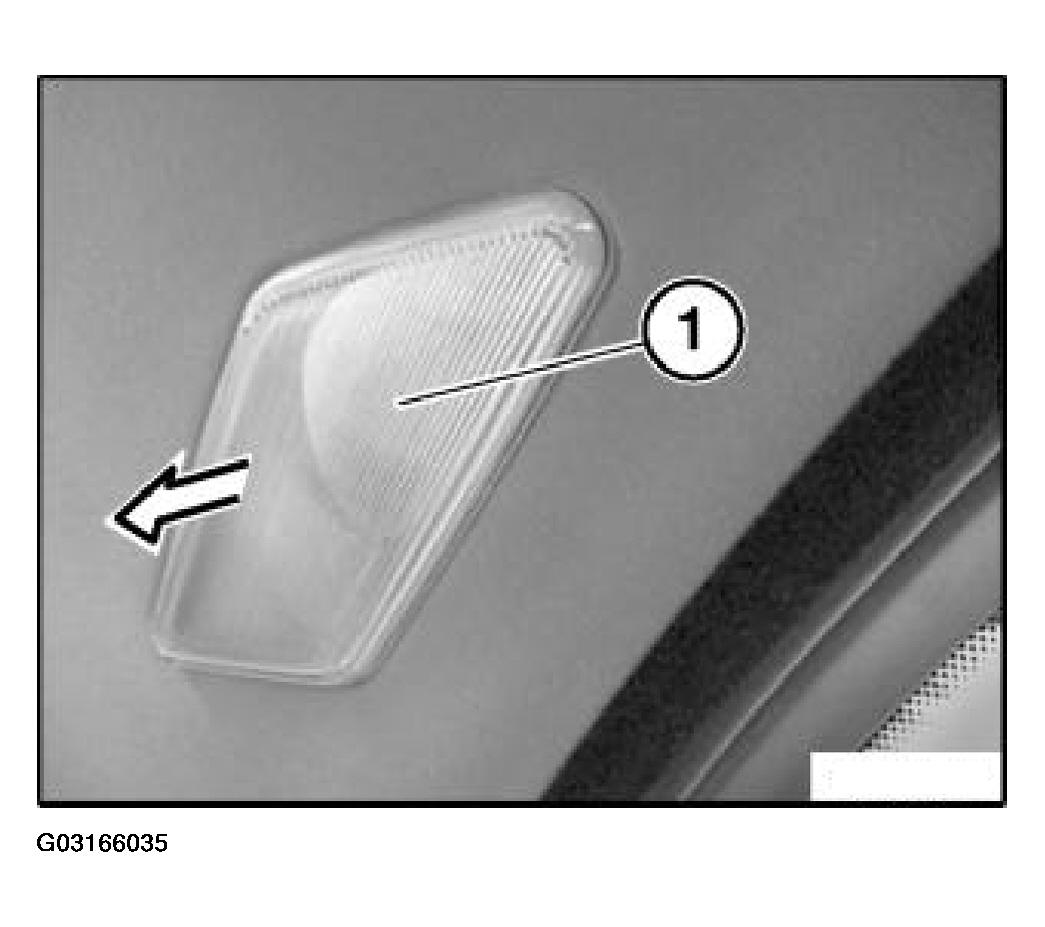

Unclip lens (1).

Fig 2: Uncliping Lens

Courtesy of BMW OF NORTH AMERICA, INC.

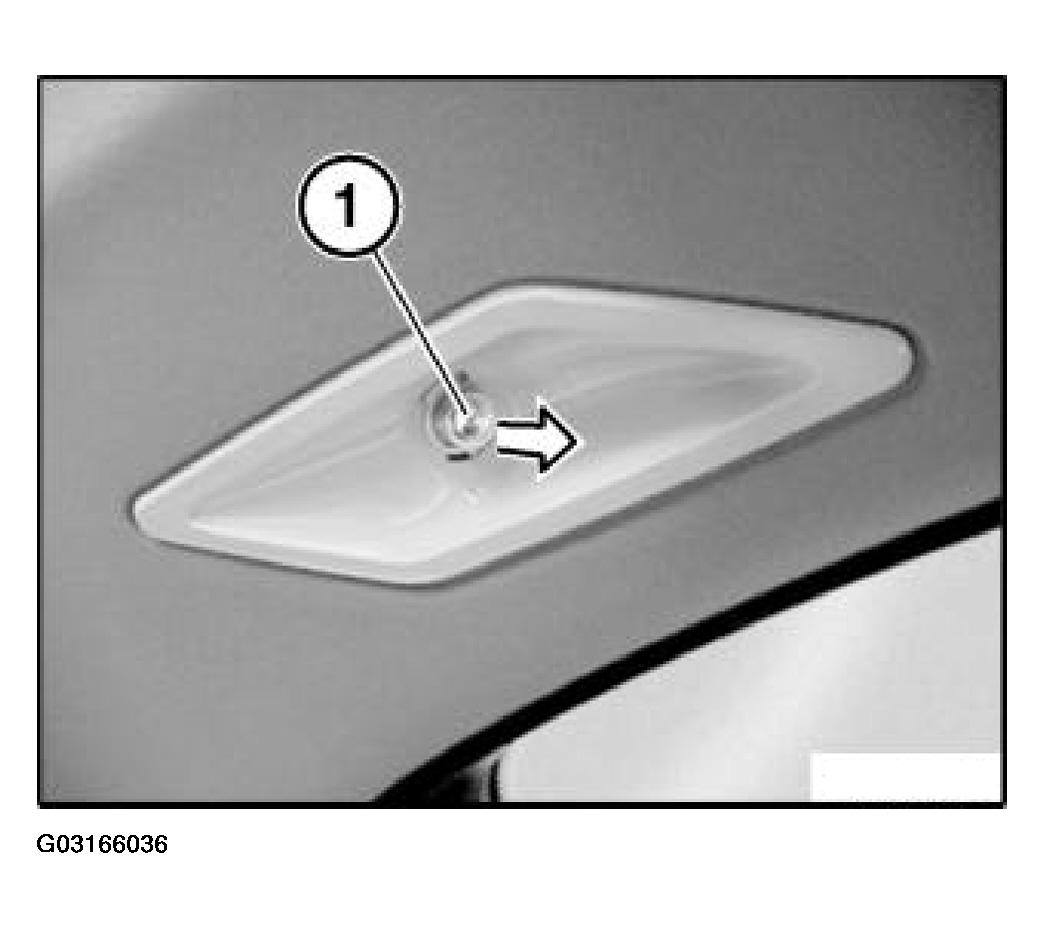

Pull bulb (1) in direction of arrow from bulb holder.

Fig 3: Pulling Bulb In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
