63 31 015 Removing and installing/replacing left or right interior light (C-pillar or hard top)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Secure interior light against falling out.

Version With Inside Reading Lamp:

Lever out interior light (1) in direction of arrow.

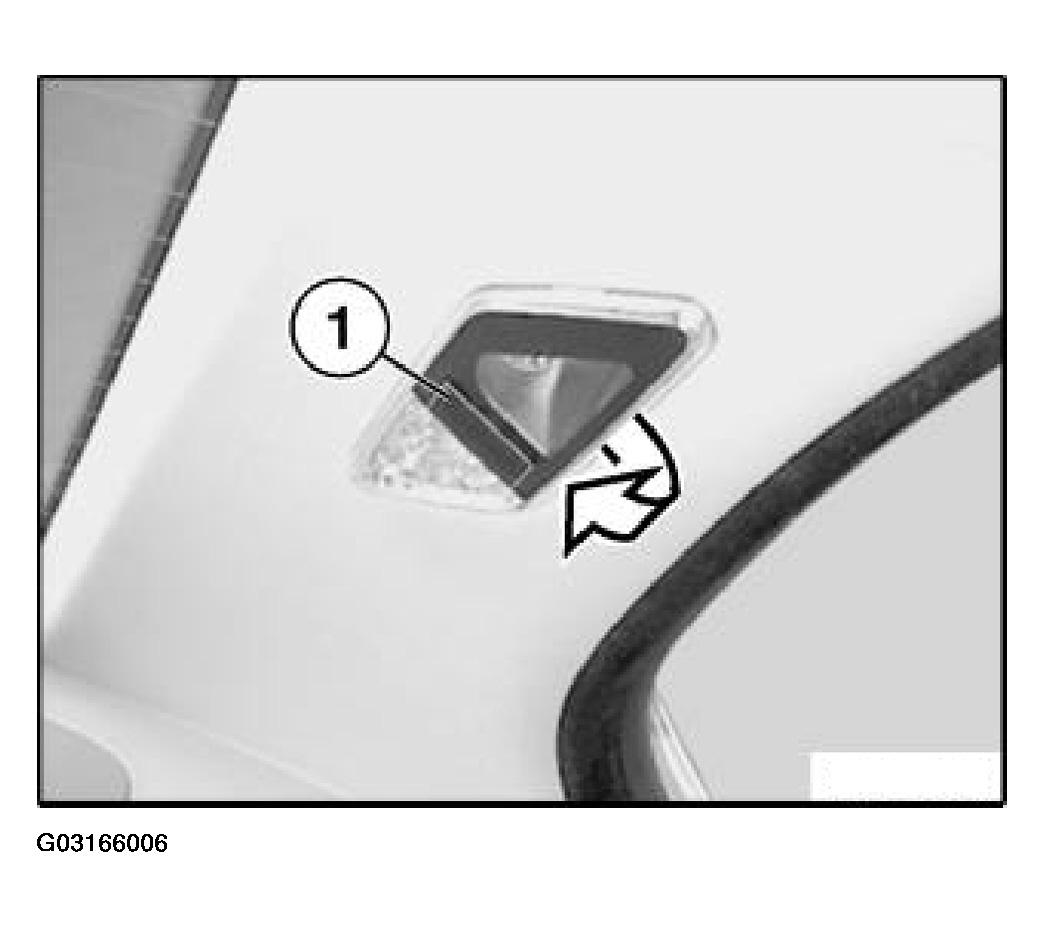

Fig 1: Levering Out Interior Light In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove interior light (1).

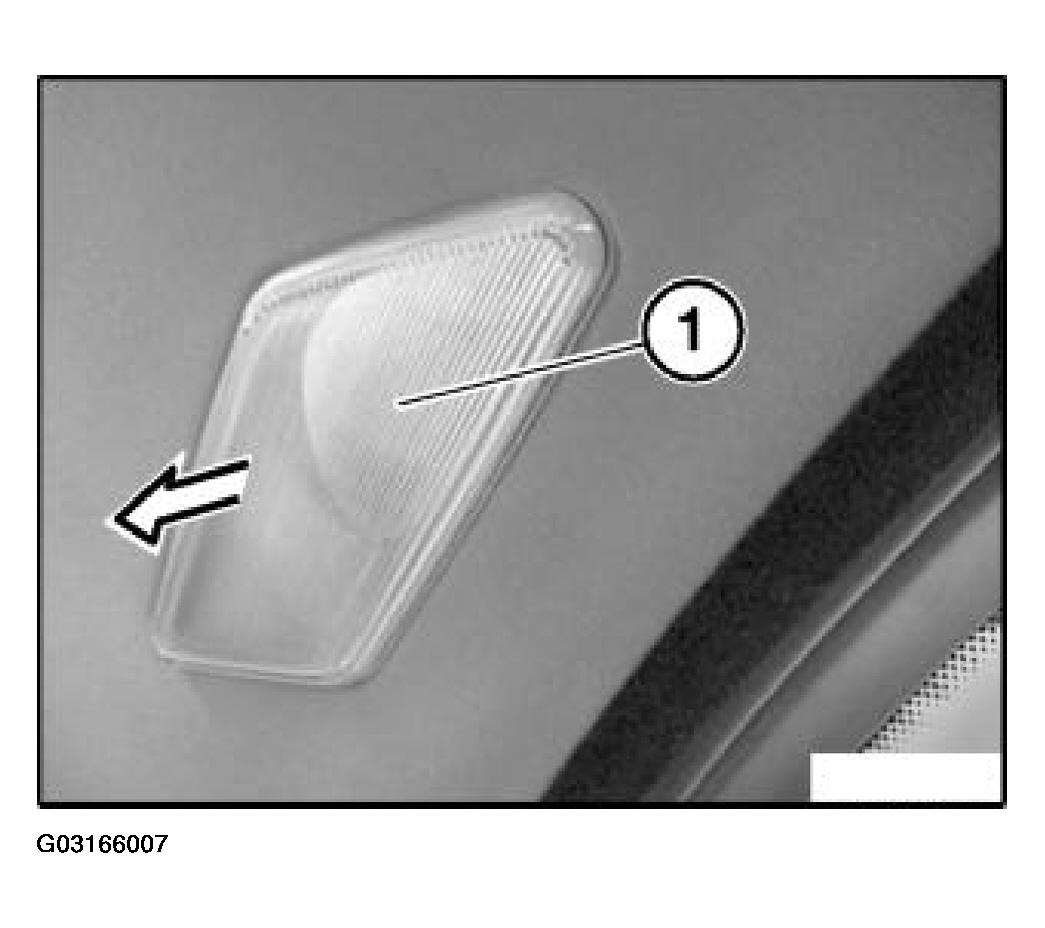

Fig 2: Levering Out Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Inside Reading Lamp:

Lever out interior light (1) in direction of arrow.

Disconnect plug connection underneath and remove interior light (1).
