63 17 000 Removing and installing/replacing left or right fog lamp insert (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 317

Up To 09/2001:

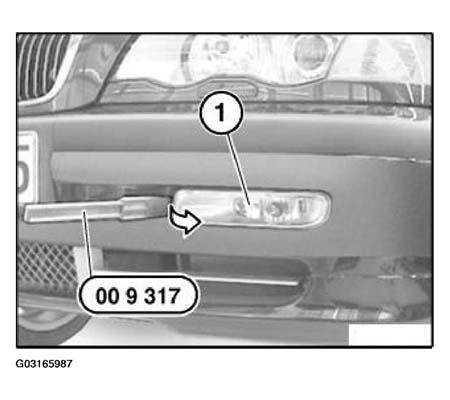

Lever out fog lamp insert (1) with special tool 00 9 317 and fold out in direction of arrow.

Fig 1: Levering Out Fog Lamp Insert

G03165987

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

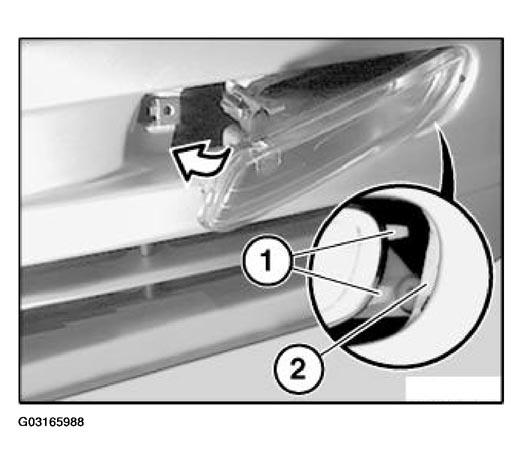

Feed detent lugs (1) into outer guide (2).
Clip inner fog lamp insert into retainer.

Fig 2: Feeding Detent Lugs (1) Into Outer Guide (2)

G03165988

Courtesy of BMW OF NORTH AMERICA, INC.

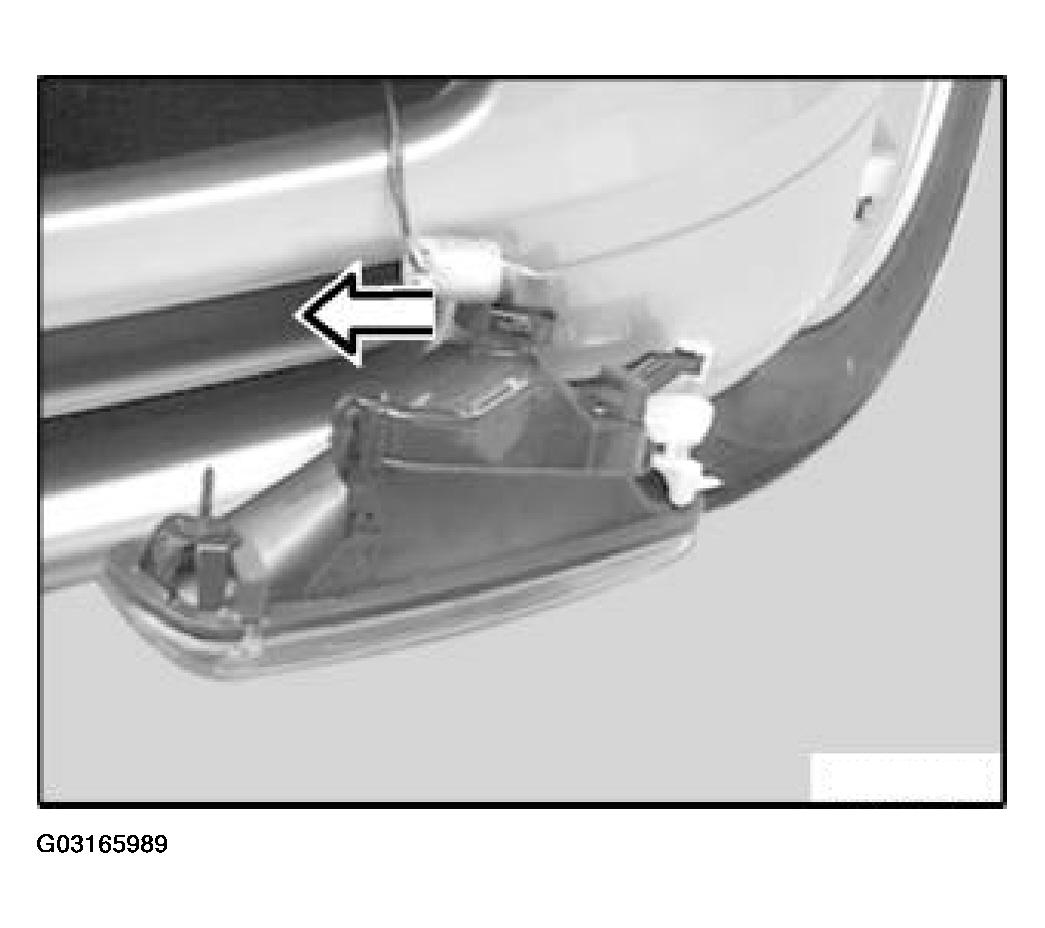

Disconnect plug connection and remove fog lamp insert.

Fig 3: Disconnecting Plug Connection And Removing Fog Lamp Insert

G03165989

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Adjust front fog lamps. See 63 10 014 Adjusting fog lamps

From 09/2001:

Left side only: Remove outside temperature sensor. See 65 81 060 REMOVING AND INSTALLING/REPLACING EXTERNAL TEMPERATURE SENSOR

Remove cover from front wheel housing. See 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER

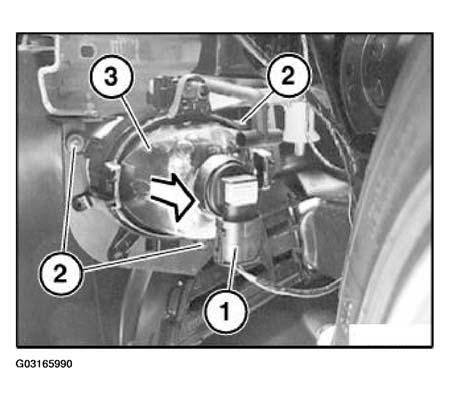

Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection

G03165990

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove fog lamp insert (3) in direction of arrow.

Installation:

Make sure ventilation grommet is laid without kinks and is sufficiently firmly seated.

Replacement:

Adjust front fog lamps. See 63 10 014 Adjusting fog lamps
