51 71 041 Removing and installing/replacing rear left or right wheel arch cover

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Shown here without rear wheel to illustrate details better.

Release expansion rivet (1), plastic nut (2), and screw (3).

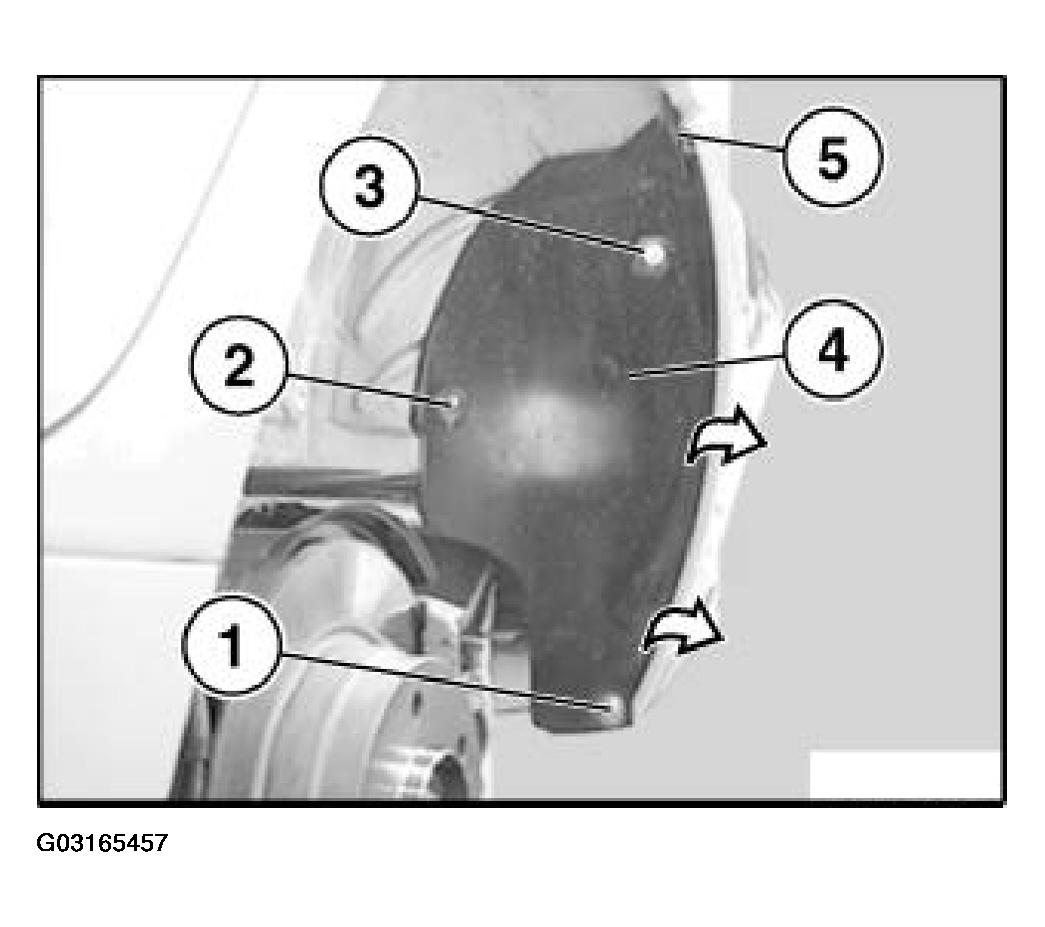

Fig 1: Removing Expansion Rivet, Plastic Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version with tire-pressure checking system: Disconnect plug connection after levering out wheel arch cover (4).

Lever out wheel arch cover (4) and remove.

Installation:

Insert wheel arch cover (4) at top into bumper (5).

Installation:

Guide (1) of wheel arch cover (2) must not be damaged.

Fig 2: Identifying Guide Of Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement with tire-pressure checking system only:

Release screws (1) and remove receiving antenna (2) from wheel arch cover (3).

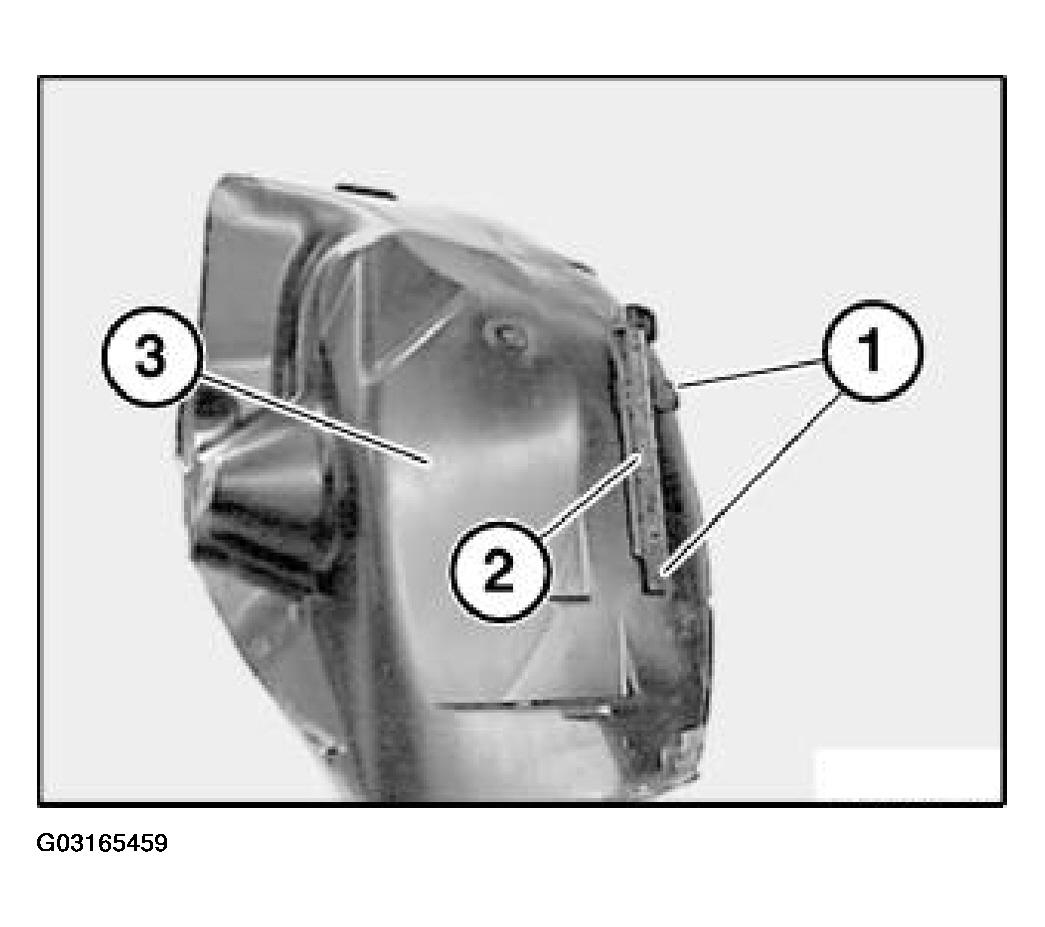

Fig 3: Removing Receiving Antenna From Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.
