52 16 025 Removing and installing/replacing left or right seat mechanism (on sport/electric front seat)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove seat pan and flexmat on front seat, refer to 52 16... REMOVING AND INSTALLING/REPLACING SEAT PAN AND FLEX MAT ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC)
Remove backrest frame on front seat, refer to 52 13 030 REMOVING AND INSTALLING / REPLACING BACK-REST FRAME ON LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .
Remove seatbelt tensioner, refer to 72 11 030 Removing and installing/replacing front seat belt .

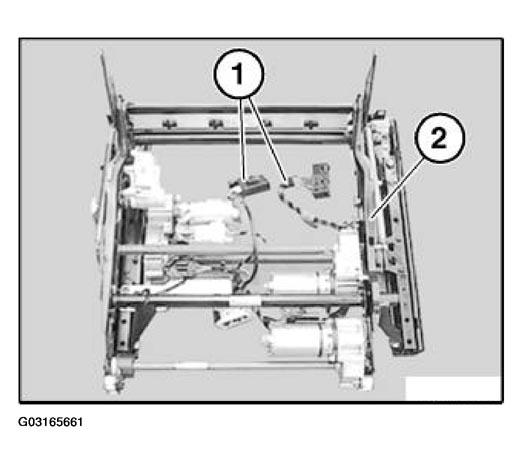

Disconnect all plug connections (1) from actuator drives.
Remove seat wiring harness from seat mechanism (2).
Installation:
- Perform function check:

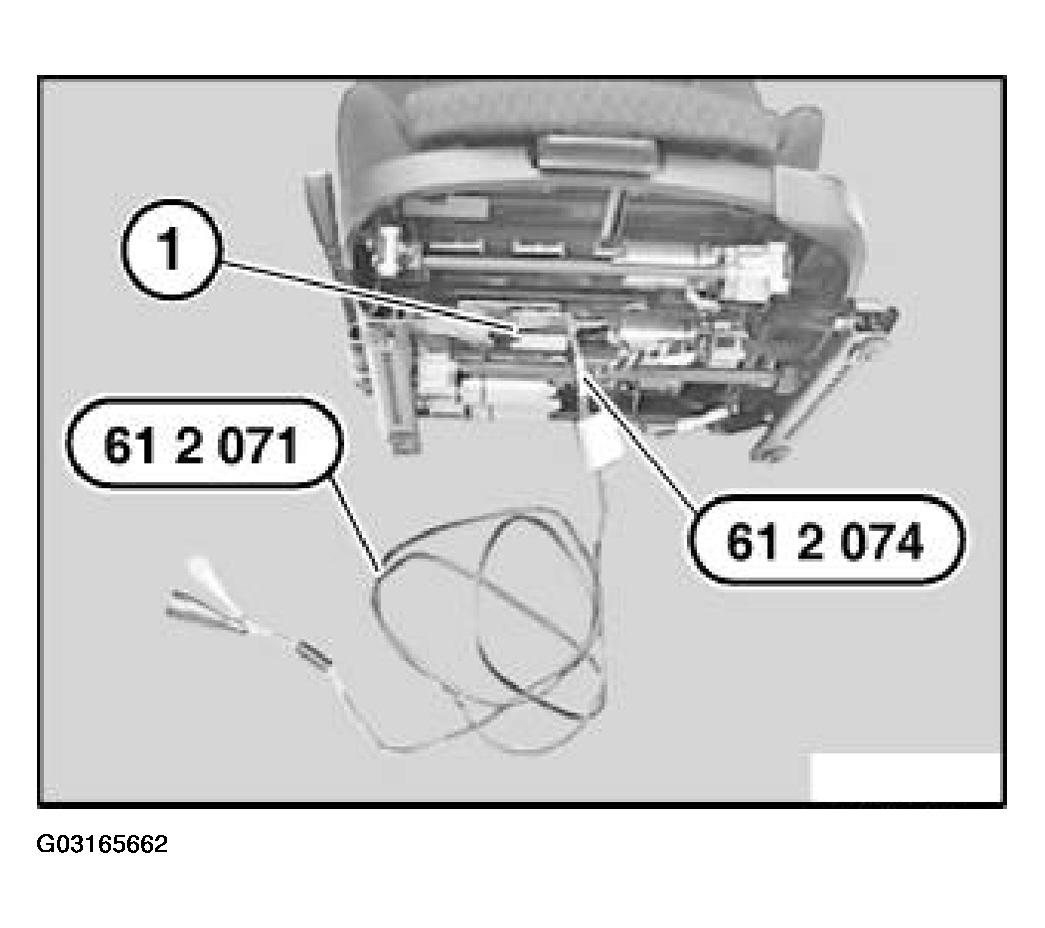

- Connect cable 61 2 071 to battery, connect cable 61 2 074 to cable 61 2 071 and plug connection (1) to front seat.
