52 16... Removing and installing/replacing seat pan and flex mat on front left or right seat (sports/electric)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with padding, refer to 52 16 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (SPORTS/ELECTRIC) .

Release left screw (1) and slacken right screw only.

Fig 1: Levering Out Retaining Plate

G03165651

Courtesy of BMW OF NORTH AMERICA, INC.

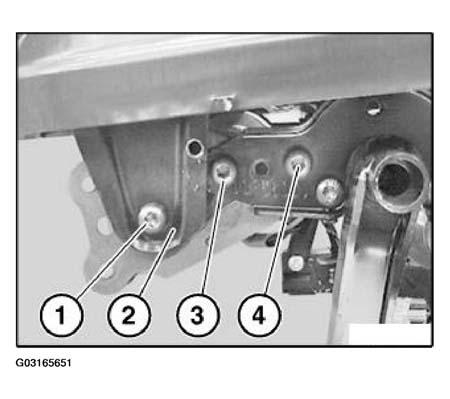

Release left/right screws (3)

Slacken left/right screws (4) only.

Lever out retaining plate (2) on left.

Installation:

Tightening Torque, 10 +/- 2 Nm.

Press seat pan (4) upwards, thereby relieving tension on flex mat.

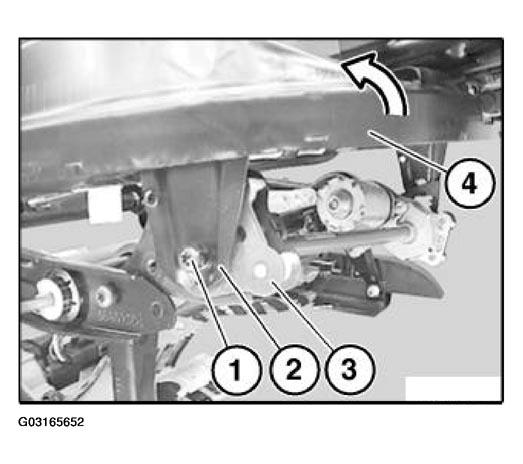

Fig 2: Relieving Tension On Flex Mat

G03165652

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove support (2) from gear (3).

Installation:

Tightening Torque, 10 +/- 2 Nm.

Installation:

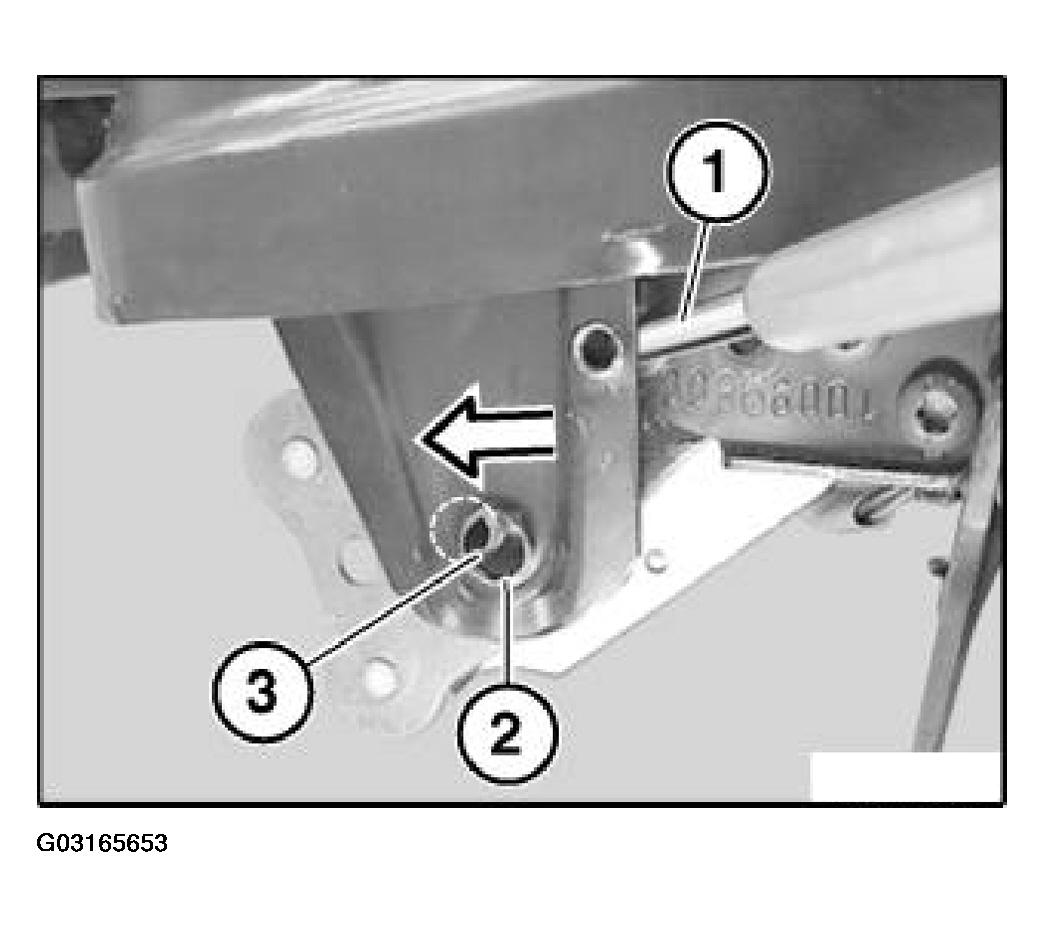

Using split-pin drift (1), lift support (2) onto guide (3).

Fig 3: Lifting Support Onto Guide

G03165653

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat occupancy detector:

If necessary, unhook control unit (1) and cable (3) from holders (2).

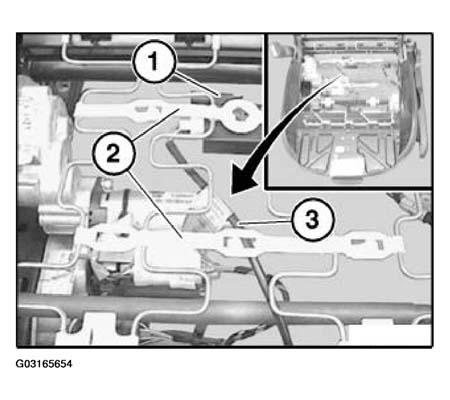

Fig 4: Unhooking Control Unit And Cable From Holders

G03165654

Courtesy of BMW OF NORTH AMERICA, INC.

Turn seat pan (1) upwards.

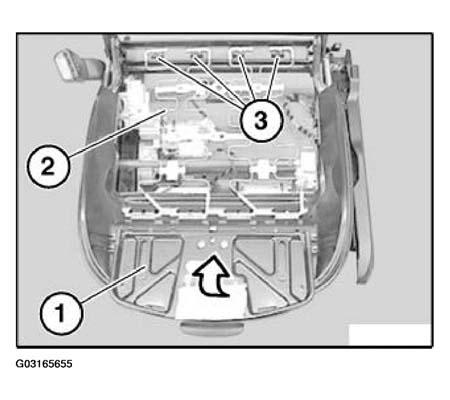

Detach flexmat (2) at rear from mounts (3).

Fig 5: Removing Flexmat At Rear From Mounts

G03165655

Courtesy of BMW OF NORTH AMERICA, INC.

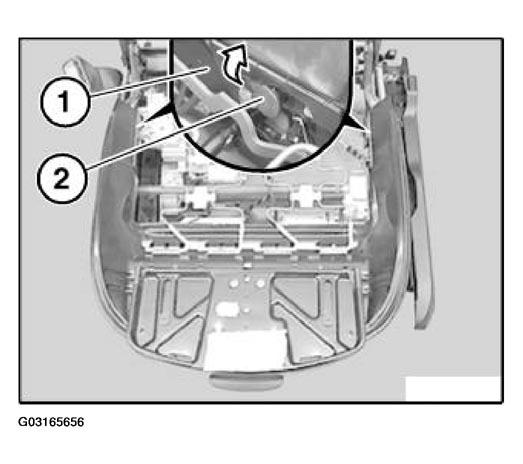

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Removing Seat Pan On Left/Right Backwards/Top From Mount

G03165656

Courtesy of BMW OF NORTH AMERICA, INC.

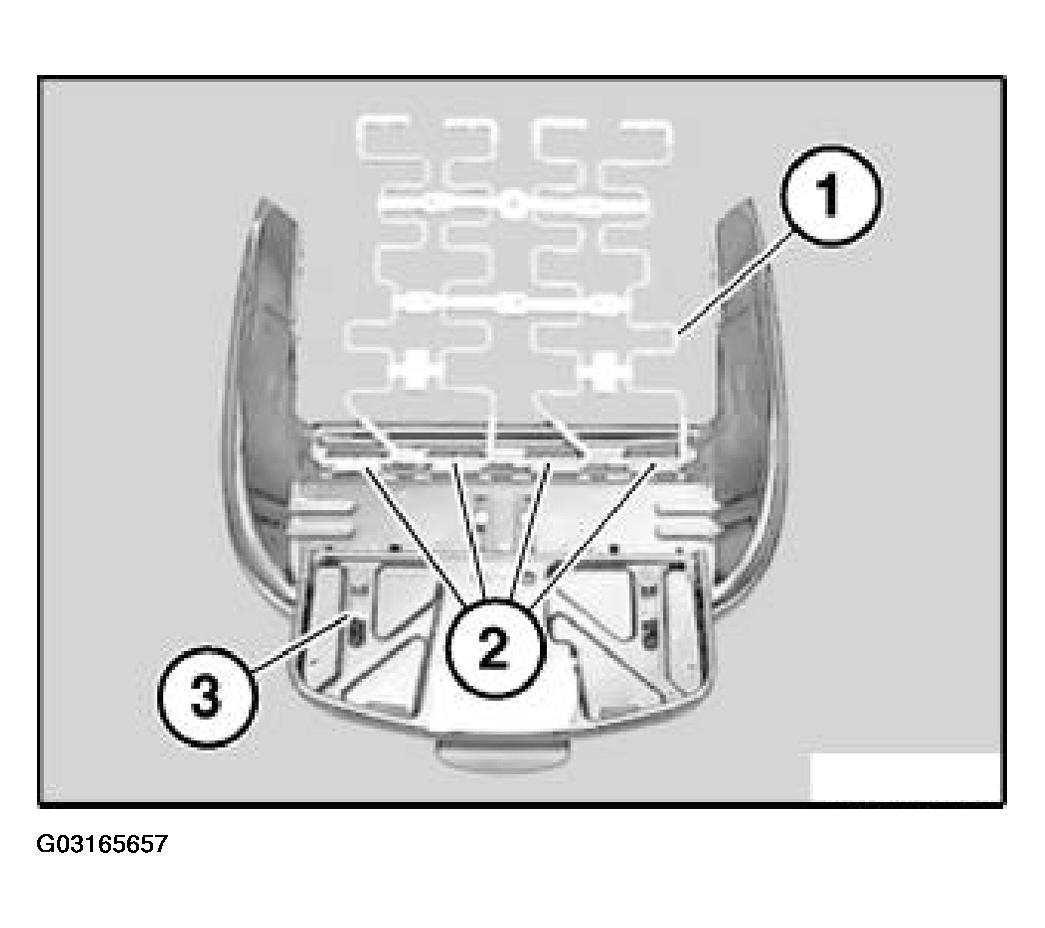

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Removing Flexmat From Mounts On Seat Pan

G03165657

Courtesy of BMW OF NORTH AMERICA, INC.

Removing thigh support from seat pan:

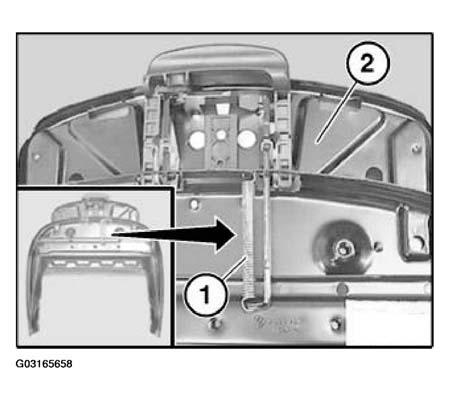

Unhook spring (1) from thigh support (2).

Fig 8: Unhooking Spring From Thigh Support

G03165658

Courtesy of BMW OF NORTH AMERICA, INC.

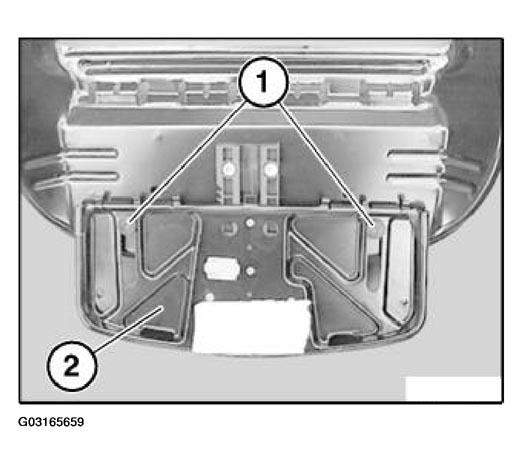

Release screws (1) and remove thigh support (2).

Fig 9: Removing Thigh Support

G03165659

Courtesy of BMW OF NORTH AMERICA, INC.

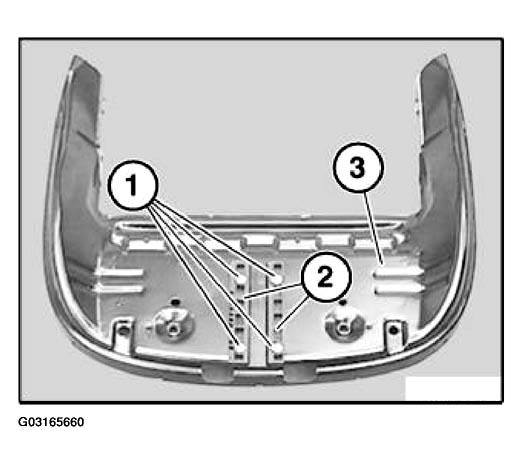

If necessary, release screws (1) and remove guide rails (2) from seat pan (3).

Fig 10: Removing Guide Rails From Seat Pan

G03165660

Courtesy of BMW OF NORTH AMERICA, INC.
