52 14 070 Removing and installing/replacing seat angle adjuster on left or right front seat (normal/electric)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove outer cover, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .

Release screws (1).

Release screw (2).

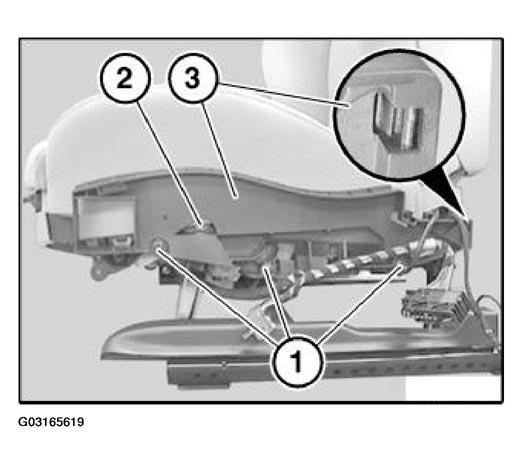

Unclip carrier (3) from seat mechanism at rear.

Fig 1: Unclipping Carrier From Seat Mechanism

G03165619

Courtesy of BMW OF NORTH AMERICA, INC.

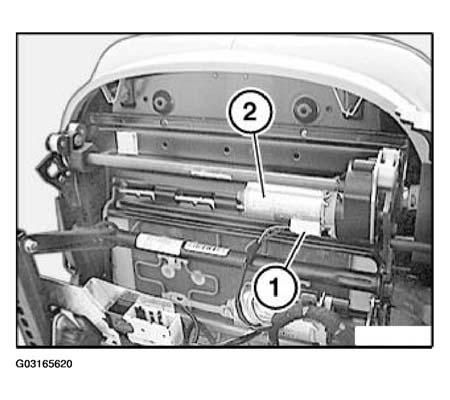

Unlock plug connection (1) on drive unit (2) and disconnect.

Fig 2: Unlocking Plug Connection On Drive Unit

G03165620

Courtesy of BMW OF NORTH AMERICA, INC.

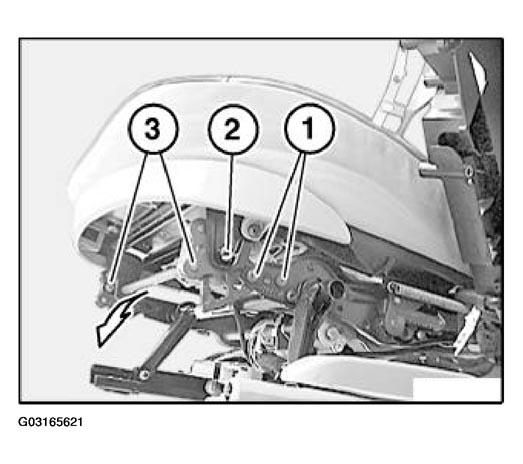

Release screws (1).

Fig 3: Removing seat angle adjuster

G03165621

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace Taptite screws (1).

Tightening torque, 9 Nm.

Release screw (2).

Tightening torque, 9 Nm.

Remove seat angle adjuster (3).

Installation:

Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
