52 16 040 Removing And Installing/Replacing Outer Cover On Front Left Or Right Seat (Sports/Electric)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew bolt (1).

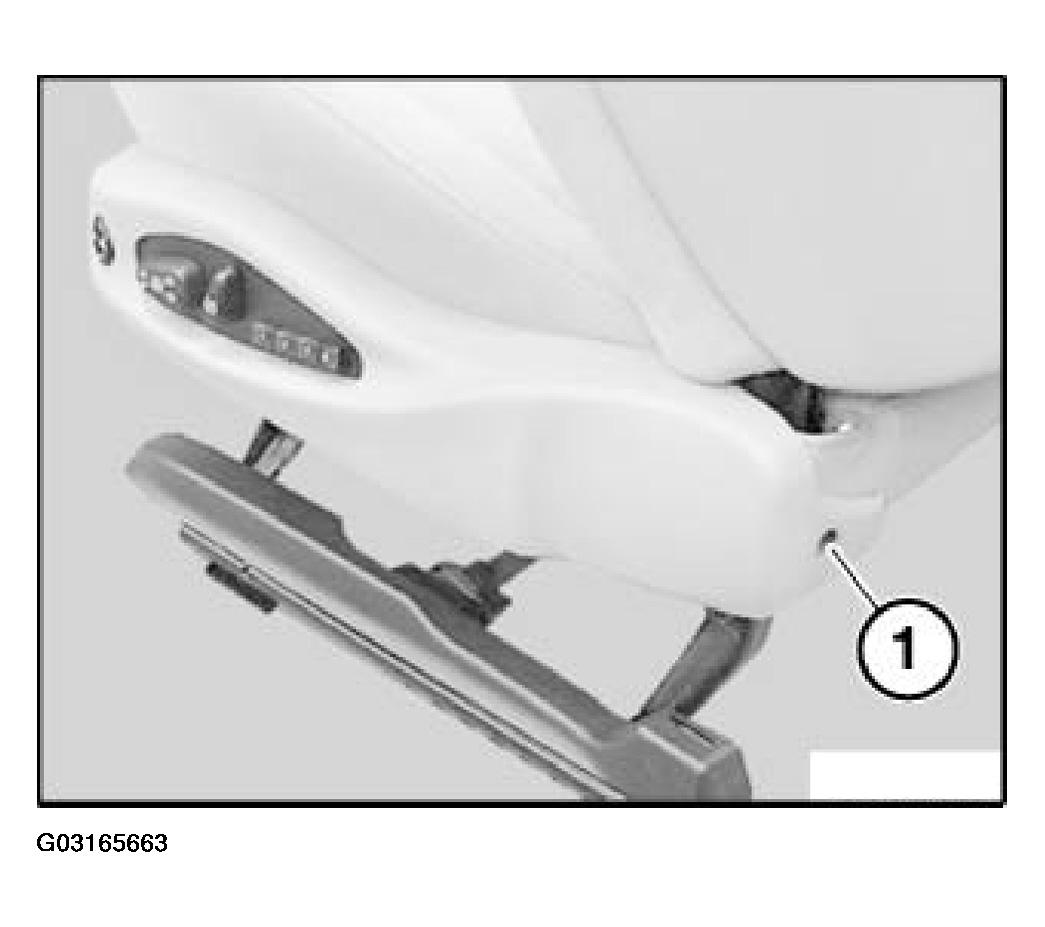

Fig 1: Unscrewing Bolt
G03165663Courtesy of BMW OF NORTH AMERICA, INC.

Removing top cover:

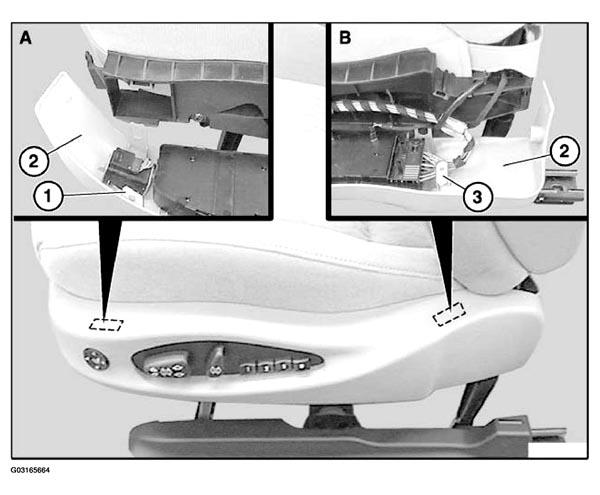

Fig 2: Removing Top Cover
G03165664Courtesy of BMW OF NORTH AMERICA, INC.
  1. Snap out catch (1) on front cover (2) towards bottom and pull cover (2) outwards a little.
  2. Snap out catch (3) on rear cover (2) towards front/bottom and pull cover (2) outwards a little.

Lever lugs (1) on cover (3) out of brackets (2).

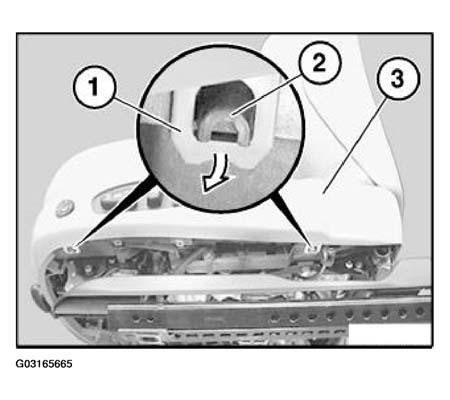

Fig 3: Levering Lugs On Cover Out Of Brackets
G03165665Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

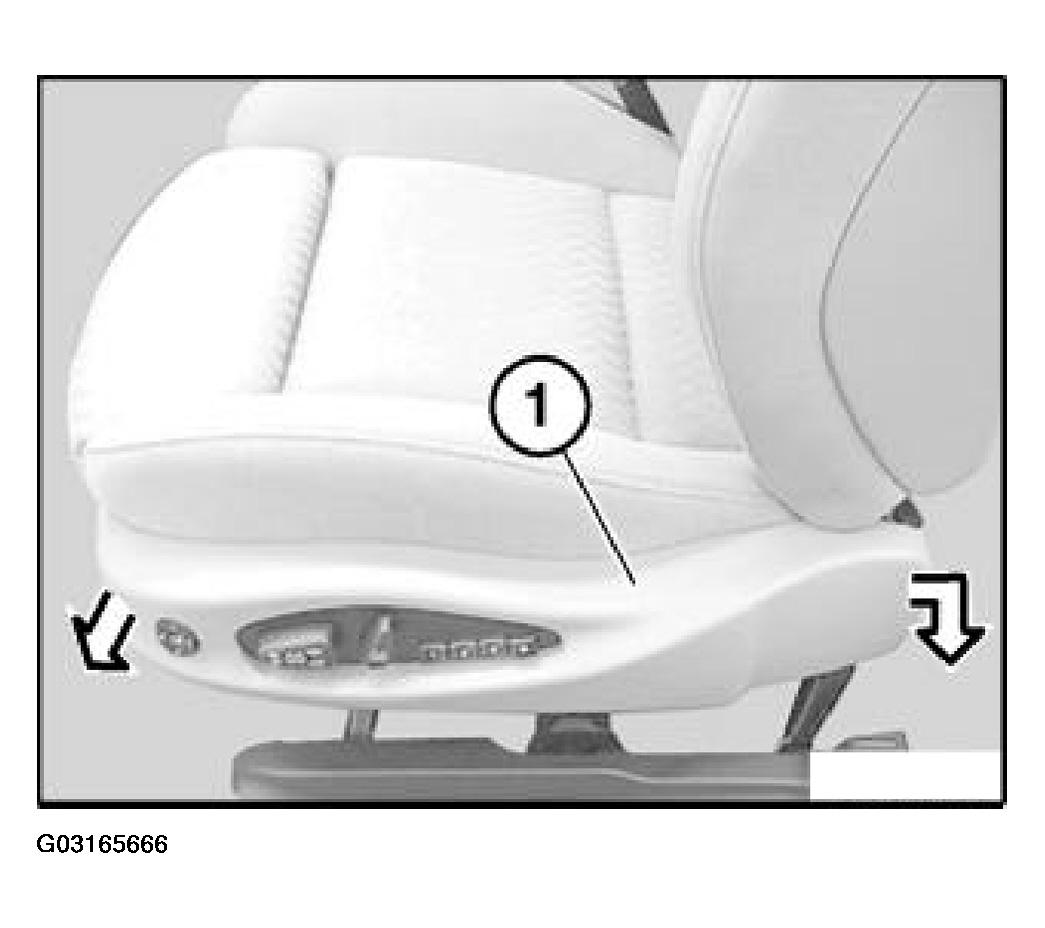

Fig 4: Removing Cover
G03165666Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Do not crush cables (1) during installation.
  2. Insert lugs (2) into mounts (3) and snap into place.

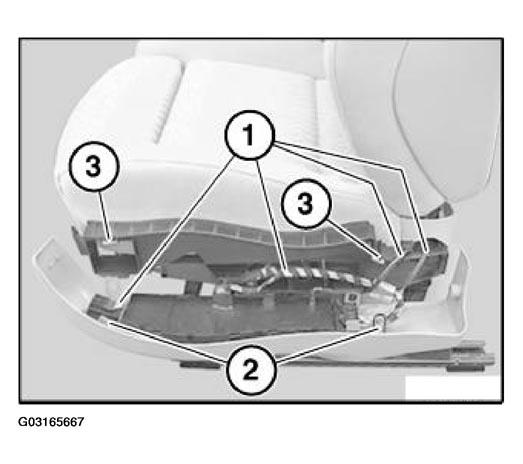

Fig 5: Inserting Lugs Into Mounts
G03165667Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

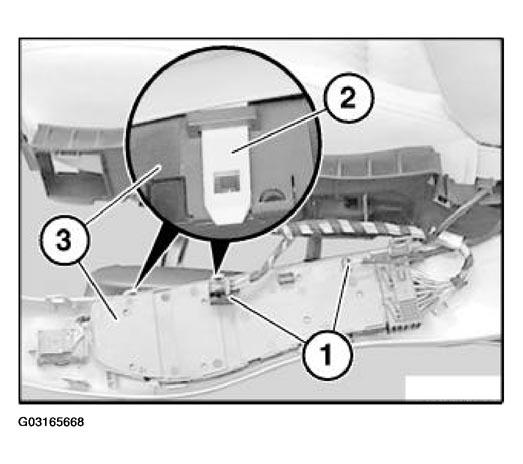

Fig 6: Detaching Switch Combination
G03165668Courtesy of BMW OF NORTH AMERICA, INC.

Lever out lugs (2) and detach switch combination (3).

Installation:

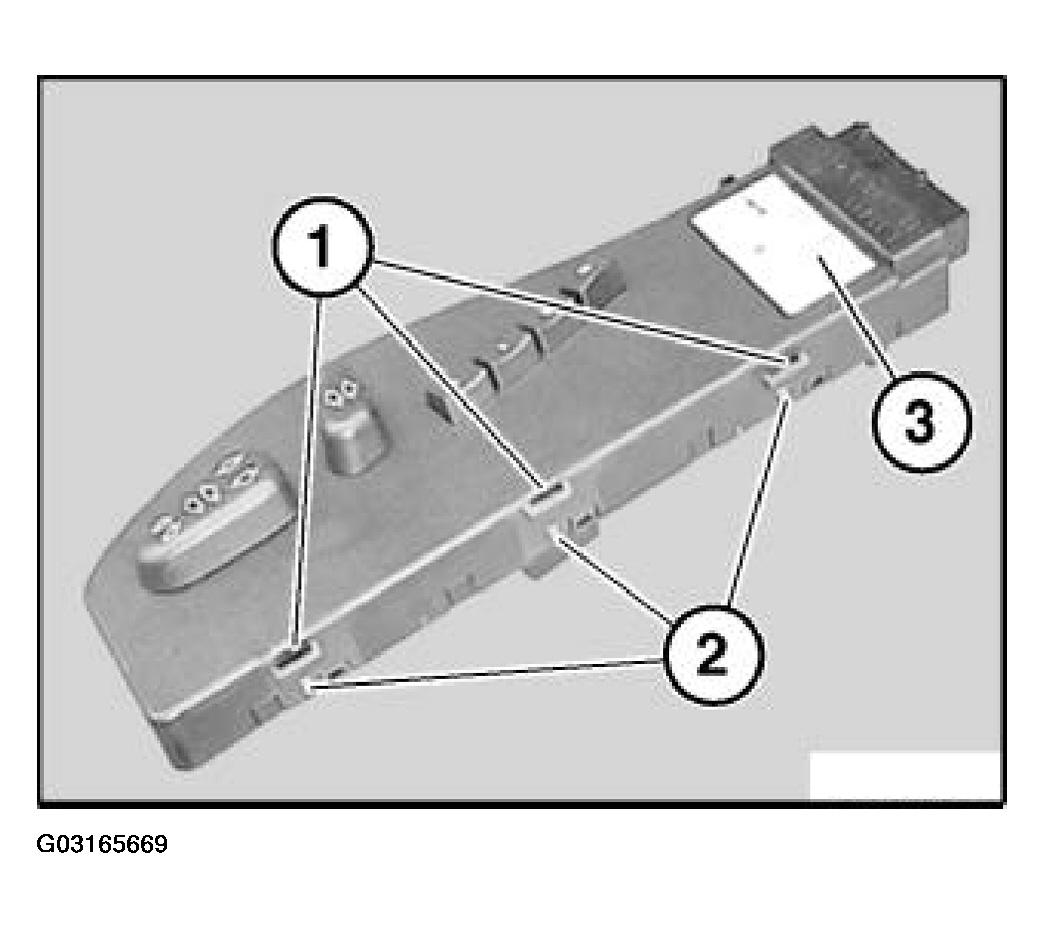

  1. Guides (1) and catches (2) on switch combination (3) must not be damaged.
Fig 7: Identifying Guides And Catches On Switch Combination
G03165669Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, expose cable (1) and disconnect plug connection (2).

Replacement only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

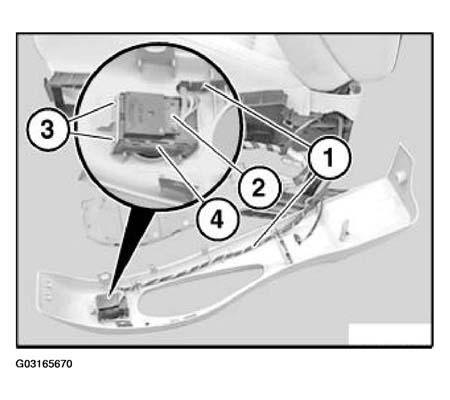

Fig 8: Removing Switch From Cover
G03165670Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Following parts must not be damaged, replace cover (4) if necessary:

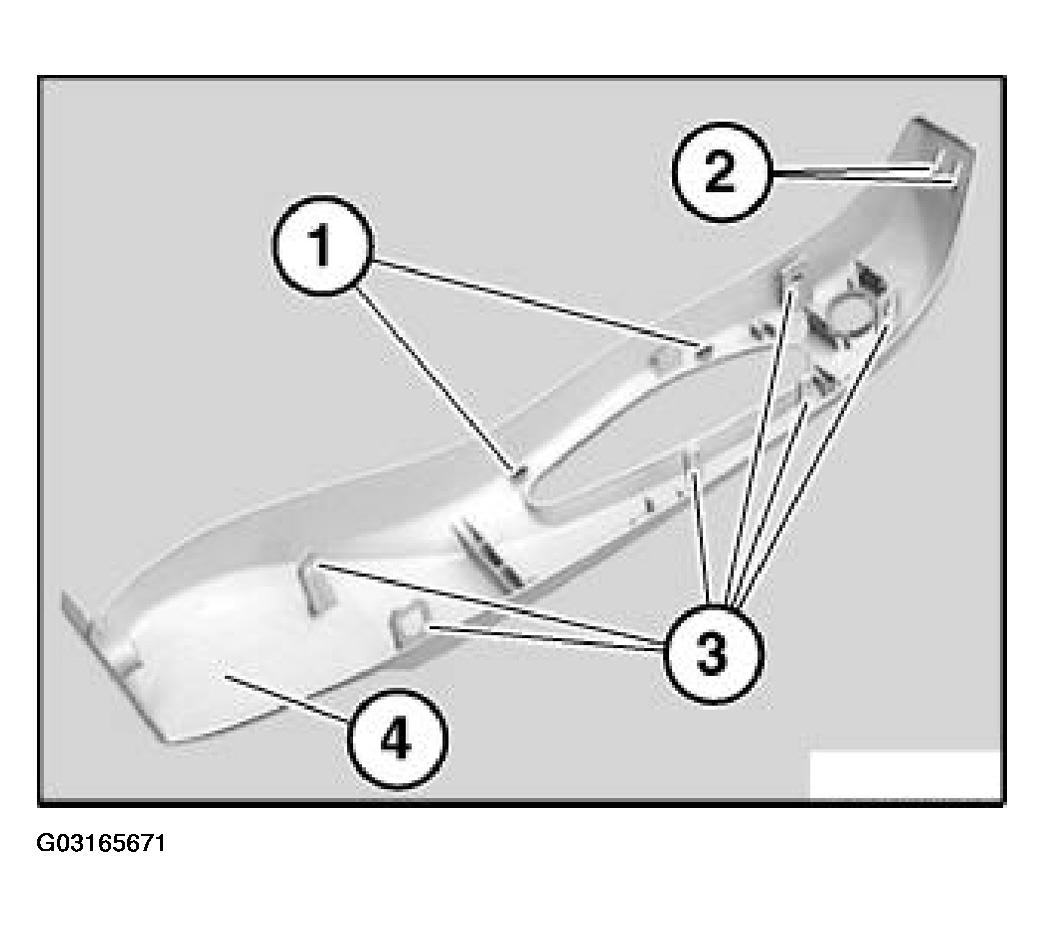

Fig 9: Identifying Parts
G03165671Courtesy of BMW OF NORTH AMERICA, INC.
  1. Mounts for switch combination
  2. Guide, front
  3. Tabs

Replacement of switch combination only or in event of further work on front seat:

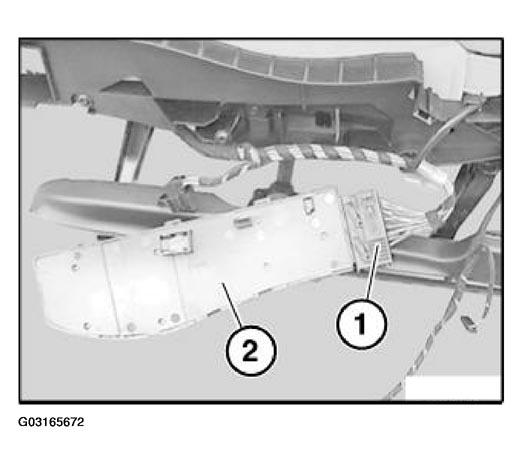

Disconnect plug connection (1) and remove switch combination (2).

Fig 10: Removing Switch Combination
G03165672Courtesy of BMW OF NORTH AMERICA, INC.
